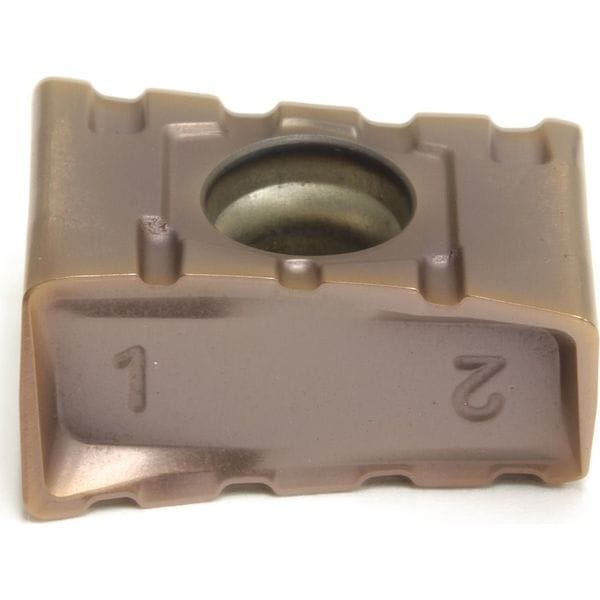

Sumitomo Milling Insert, ACK200 Grade, Carbide LNMX170808PNSR-R-ACK200 - main

Milling Insert, ACK200 Grade, Carbide

  • Mfr # LNMX170808PNSR-R-ACK200

  • Zoro # G0594653

product price: $20.99
/ea
Sold in multiples of 10 for $209.90

Key Features

Workpiece Compatibility
Cast Iron (K)
Steel (P) Compatibility
No
Coating
CVD
Hardened (H) Compatibility
No
For Use With
Shoulder Milling Cutters
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LNMX170808PNSR-R-ACK200
Zoro #
G0594653
UPC #
-
Country of Origin
Japan

Dimensions

Nose Radius
0.800"
Insert Size
170808
Insert Thickness
0.310"
Thickness
0.310 in
Cutting Edge Length
17.20mm
Depth of Cut
16.00mm
Corner Radius
1/32 in
Width
13.00mm

Details

Workpiece Compatibility
Cast Iron (K)
Steel (P) Compatibility
No
Coating
CVD
Hardened (H) Compatibility
No
For Use With
Shoulder Milling Cutters
Mounting Style
Screw-On
Inscribed Circle
0.180 in
Insert Style
LNMX
No. of Edges
4
Insert Application
Medium
ANSI Number
LNMX170808PNSR-R-ACK200
Chip-Breaker
Yes
Cutting Direction
Right Hand
Grade
ACK200
Insert Material
Carbide
Rake
-15 Degrees Radial, -6 Degrees Axial
Insert Shape
Rectangle
Item
Diamond Milling Insert
Cast Iron (K) Compatibility
Yes
Super Alloy (S) Compatibility
No
Non Ferrous (N) Compatibility
No
Lead Angle
0 Degrees
Stainless (M) Compatibility
Yes
ISO Number
LNMX170808PNSR-R-ACK200
Chip-Breaker Code
R
Chip-Breaker Style
10 Degrees Rake Angle
Material - Machining
Carbide
Number of Cutting Edges
4
Measurement System
Metric
Primary Material Application
Cast Iron
Clearance Angle
0 Degrees
Wiper Insert
Yes
Features
Excellent Balance of Fracture and Wear Resistance
Cutting Application
Medium
Coating Process
CVD
Shape
Rectangular
For Toolholder
PWS410000R, PWS43000R, PWS44000R-1.25, PWS44000R-1.50, PWS45000R, PWS46000R, PWS48000R, PWSF410000R, PWSF43000R, PWSF44000R-1.25, PWSF44000R-1.50, PWSF45000R, PWSF46000R, PWSF48000R
Hole Type
Straight or Countersink Hole
Insert Holding Type
Screw-On
Manufacturer Grade
ACK200
ANSI Code
LNMX170808PNSR-R-ACK200
Primary Material Application ISO Code
K
Finish - Machining
TiCN

Description

Diamond Milling Insert, Inscribed Circle 0.180 in, -15 Degrees Radial, -6 Degrees Axial
