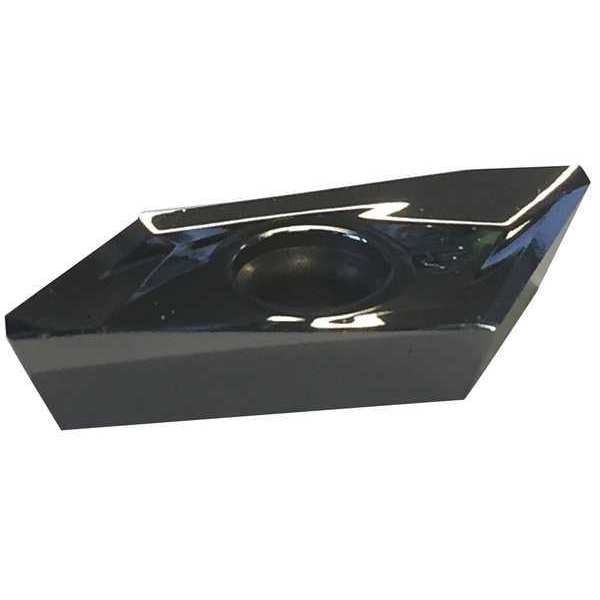

Sumitomo Milling Insert, H1 Grade, Carbide AECT220640PEFRA-H1 - main

Milling Insert, H1 Grade, Carbide

  • Mfr # AECT220640PEFRA-H1

  • Zoro # G0571291

product price: $40.69
/ea
Sold in multiples of 5 for $203.45

Key Features

Inscribed Circle
0.240 in
ANSI Number
AECT220640PEFRA-H1
Lead Angle
0 Degrees
No. of Edges
2
Mounting Style
Screw-On
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
AECT220640PEFRA-H1
Zoro #
G0571291
UPC #
-
Country of Origin
Japan

Dimensions

Insert Size
220640
Nose Radius
4.000"
Insert Thickness
0.250"
Cutting Edge Length
22.00mm
Thickness
0.250 in
Corner Radius
0.1575 in
Depth of Cut
22.00mm

Details

Inscribed Circle
0.240 in
ANSI Number
AECT220640PEFRA-H1
Lead Angle
0 Degrees
No. of Edges
2
Mounting Style
Screw-On
Cutting Direction
Right Hand
Item
Parallelogram Milling Insert
Stainless (M) Compatibility
No
Rake
-10 Degrees Radial, 19 Degrees to 25 Degrees Axial
Non Ferrous (N) Compatibility
Yes
Insert Material
Carbide
Super Alloy (S) Compatibility
No
Steel (P) Compatibility
No
Workpiece Compatibility
Nonferrous (N)
Insert Style
AECT
Grade
H1
Coating
Uncoated
Cast Iron (K) Compatibility
No
For Use With
Shoulder Milling Cutters
Insert Application
Medium
Hardened (H) Compatibility
No
Chip-Breaker
Yes
Insert Shape
Parallelogram
ISO Number
AECT220640PEFRA-H1
Manufacturer Grade
H1
Primary Material Application
Aluminum, Brass, Bronze, Copper, Magnesium
Shape
Parallelogram
Clearance Angle
20 Degrees
Insert Holding Type
Screw-On
For Toolholder
WAX4050RS-3.2, WAX4050RS-4.0, WAX4063RS-3.2, WAX4063RS-4.0, WAX4080RS-3.2, WAX4080RS-4.0, WAX4100RS-3.2, WAX4100RS-4.0, WAX4125RS-3.2, WAX4125RS-4.0
Measurement System
Metric
Finish - Machining
Bright (Uncoated)
Features
Excellent Balance of Fracture and Wear Resistance
Number of Cutting Edges
2
Primary Material Application ISO Code
N
Wiper Insert
Yes
Material - Machining
Carbide
Cutting Application
Medium
Included Angle
85 Degrees
ANSI Code
AECT220640PEFRA-H1
Hole Type
Countersink Hole
Chip-Breaker Style
Single Sided

Description

Parallelogram Milling Insert, Inscribed Circle 0.240 in, -10 Degrees Radial, 19 Degrees to 25 Degrees Axial, AECT220640PEFRA-H1, Single Sided, 20 Degrees
