  9. Milling Insert, K246L9 Grade, Carbide

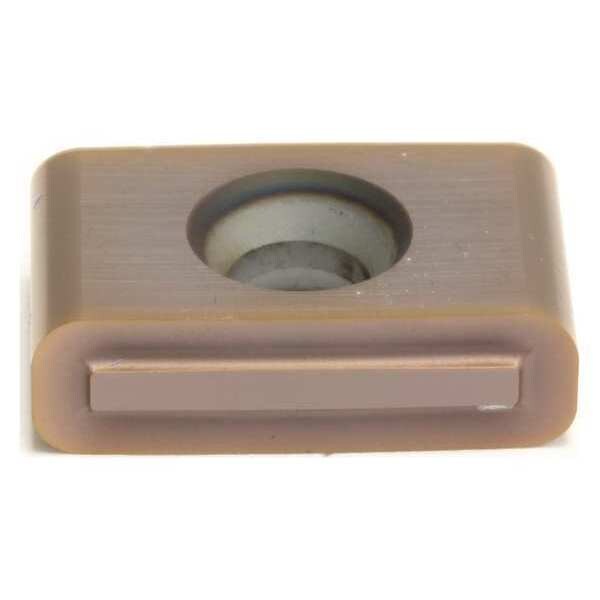

Sumitomo Milling Insert, K246L9 Grade, Carbide LNGX160516PNFN-W-K246L9 - main

Milling Insert, K246L9 Grade, Carbide

  • Mfr # LNGX160516PNFN-W-K246L9

  • Zoro # G0608111

product price: $22.55
/ea
Sold in multiples of 10 for $225.50

Key Features

Nose Radius
1.600"
Inscribed Circle
16.00mm
Steel (P) Compatibility
Yes
Chip-Breaker
Yes
Grade
K246L9
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LNGX160516PNFN-W-K246L9
Zoro #
G0608111
UPC #
-
Country of Origin
Japan

Dimensions

Nose Radius
1.600"
Insert Size
160516
Insert Thickness
0.190"
Thickness
0.190 in
Corner Radius
1/16 in
Depth of Cut
1.00mm
Width
3/8 in
Cutting Edge Length
5/8 in

Details

Inscribed Circle
16.00mm
Steel (P) Compatibility
Yes
Chip-Breaker
Yes
Grade
K246L9
Insert Application
Finishing
Stainless (M) Compatibility
No
Coating
PVD
Lead Angle
0 Degrees
No. of Edges
4
Insert Shape
Rectangle
ANSI Number
LNGX160516PNFN-W-K246L9
Workpiece Compatibility
Cast Iron (K)
Insert Style
LNGX
Item
Diamond Milling Insert
Cast Iron (K) Compatibility
Yes
Cutting Direction
Neutral
Non Ferrous (N) Compatibility
No
Super Alloy (S) Compatibility
No
Rake
-5 Degrees Axial, -8 Degrees Radial
Insert Material
Carbide
Hardened (H) Compatibility
No
For Use With
Milling Cutters
Mounting Style
Screw-On
ISO Number
LNGX160516PNFN-W-K246L9
Shape
Rectangular
Primary Material Application ISO Code
K
Secondary Material Application ISO Code
K
Clearance Angle
0 Degrees
ANSI Code
LNGX160516PNFN-W-K246L9
Coating Process
PVD
Primary Material Application
Cast Iron
Measurement System
Metric
Chip-Breaker Style
10 Degrees Rake Angle
Cutting Application
Finishing
Manufacturer Grade
K246L9
Chip-Breaker Code
W
Hole Type
Straight or Countersink Hole
For Toolholder
GFV53000R, GFV54000R, GFV56000R, GFV58000R
Number of Cutting Edges
4
Secondary Material Application
Cast Iron
Material - Machining
Carbide
Wiper Insert
Yes
Insert Holding Type
Screw-On

Description

Diamond Milling Insert, Inscribed Circle 16.00mm, -5 Degrees Axial, -8 Degrees Radial
