Shop SUMP ALARM

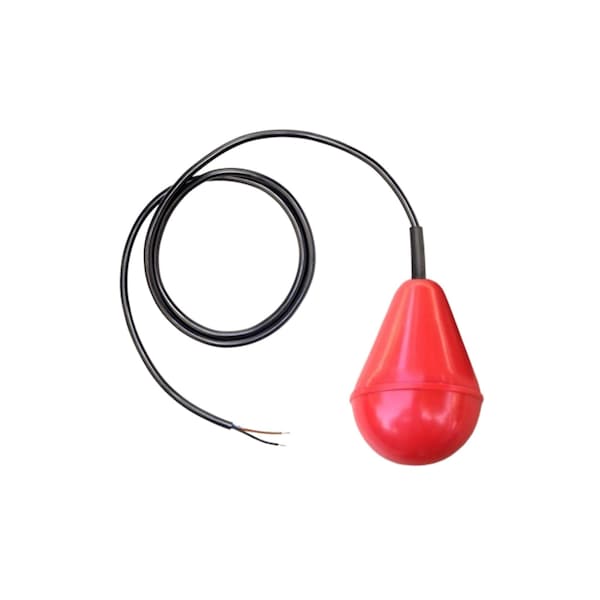

Float Switch, 51 A

  • Mfr # SA-1368-6
  • Zoro # G416495572
product price:
$
89.19
/ea

Key Features

Switch Type
Sensor
Float Material
Polypropylene
Contact Form
Normally Open
Manufacturers Warranty Length
5 yr
Series
SludgeBoss
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
SA-1368-6
Zoro #
G416495572
UPC #
850077747588
Country of Origin
Argentina

Dimensions

Manufacturers Warranty Length
5 yr
Cord Length
20 ft

Details

Switch Type
Sensor
Item
Float Switch
Float Material
Polypropylene
Contact Form
Normally Open
Series
SludgeBoss
Includes
2-Conductor Wire Leads
Standards
CE, IEC
Switch Duty
Control Duty, Pump Duty
Running Current - Maximum
13 A
NEC Cord Designation
SJEW
Electric Load Current - Maximum
12 A @ 120 V AC, 12 A @ 12V DC, 12 A @ 220V AC
Counterweight Type
Internal
On Point
45 Degrees Above Horizontal
Electric Load Current - Minimum
20 mA @ 3.3V DC
Liquid Temperature - Maximum
140 Degrees F
Actuation Method
Mechanically-Activated
Number of Floats
1
Starting Current - Maximum
51 A
Compatible Pump Type
Sump Pump
Electrical Connection
2-Conductor Wire Leads
Rated Voltage
12/24V DC, 125/250V AC
Off Point
45 Degrees Below Horizontal
Max. Media Temp
140 °F
Float Switch Off Point
45° Below Horizontal
Max. Electric Load Current
13 A @ 120V AC; 13 A @ 240V AC; 13.33 A @ 12V DC
Float Switch On Point
45° Above Horizontal
Amps
13 A

Description

Float Switch
