Shop SUPCO

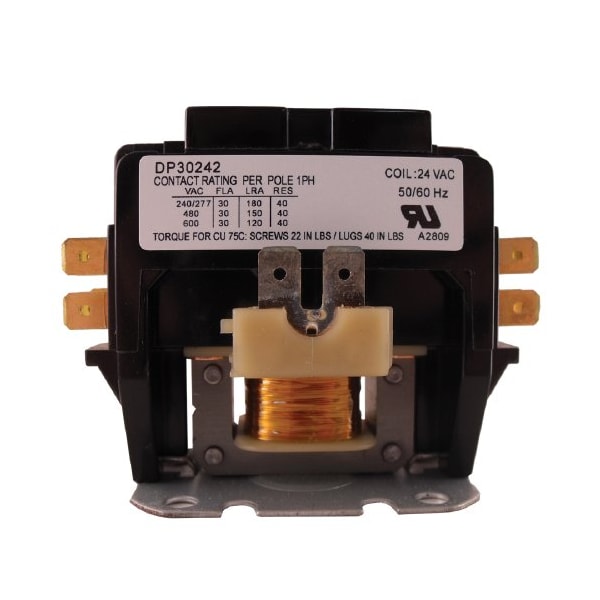

Contactor, 30A, 24V, 2 Pole

  • Mfr # DP30242

  • Zoro # G5449530

product price:  $14.19
/ea
Sold in multiples of 2 for $28.38

Key Features

Horsepower @ Three Phase - 480V AC
Not Rated
Maximum Voltage Rating
24V
Horsepower @ Single Phase - 240V AC
Not Rated
Maximum Operating Temperature
150 Degrees F
Horsepower @ Three Phase - 240V AC
Not Rated
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
DP30242
Zoro #
G5449530
UPC #
-
Country of Origin
China

Dimensions

Overall Height
2.5 in
Overall Width
3 in

Details

Item
Definite Purpose Contactor
Horsepower @ Three Phase - 480V AC
Not Rated
Maximum Voltage Rating
24V
Horsepower @ Single Phase - 240V AC
Not Rated
Maximum Operating Temperature
150 Degrees F
Horsepower @ Three Phase - 240V AC
Not Rated
Horsepower @ Three Phase - 600V AC
Not Rated
Contact Material
Silver Cadmium Oxide
NEMA Enclosure Rating
No Enclosure
Minimum Operating Temperature
-40 Degrees F
Standards
CSA, UL Listed
Mounting Style
Bottom Flange
Coil Voltage
24V AC
Horsepower @ Single Phase - 120V AC
Not Rated
Number of Normally Open Main Contacts
1
Terminal Connection Type
Box Lugs
Phase
Single
Number of Poles
2
Contactor Style
HVACR Definite Purpose Contactor
Number of Normally Closed Main Contacts
1
Reversing Capability
Non-Reversing
Full Load Current - Resistive
40 A
Horsepower @ Three Phase - 208V AC
Not Rated
Full Load Current - Inductive
30 A

Description

Definite Purpose Contactor, LED Lighting Current Rating Not Applicable, Coil Voltage 24V AC, Series Not Applicable, Number of Poles 2, NEMA Enclosure Rating No Enclosure, Tungsten Lighting Current Rating Not Applicable, Fluorescent Lighting Current Rating Not Applicable, Reversing Capability Non-Reversing, Frame Size Not Applicable, Horsepower @ Single Phase - 240V AC Not Rated, Horsepower @ Single Phase - 120V AC Not Rated, Full Load Current - Resistive 40 A, Full Load Current - Inductive 30 A
