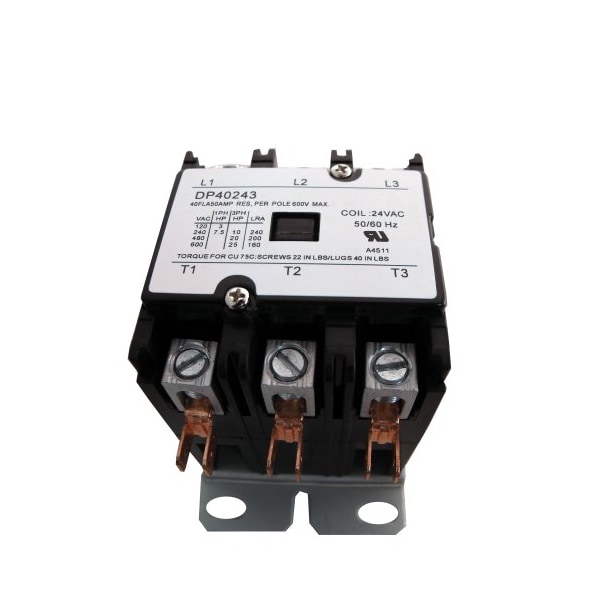

Contactor, 40A, 24V, 3 Pole

  • Mfr # DP40243

  • Zoro # G5449643

product price:  $26.79
/ea

Key Features

Terminal Connection Type
Box Lugs
Reversing Capability
Non-Reversing
Number of Normally Open Main Contacts
1
Coil Voltage
24V AC
Horsepower @ Three Phase - 208V AC
Not Rated
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
DP40243
Zoro #
G5449643
UPC #
-
Country of Origin
China

Dimensions

Overall Width
3 in
Overall Height
2.5 in

Details

Item
Definite Purpose Contactor
Terminal Connection Type
Box Lugs
Reversing Capability
Non-Reversing
Number of Normally Open Main Contacts
1
Coil Voltage
24V AC
Horsepower @ Three Phase - 208V AC
Not Rated
Horsepower @ Single Phase - 240V AC
Not Rated
NEMA Enclosure Rating
No Enclosure
Horsepower @ Three Phase - 600V AC
Not Rated
Phase
Single
Mounting Style
Bottom Flange
Number of Normally Closed Main Contacts
1
Maximum Operating Temperature
150 Degrees F
Horsepower @ Three Phase - 480V AC
Not Rated
Maximum Voltage Rating
24V
Minimum Operating Temperature
-40 Degrees F
Horsepower @ Three Phase - 240V AC
Not Rated
Horsepower @ Single Phase - 120V AC
Not Rated
Standards
CSA, UL Listed
Full Load Current - Inductive
40 A
Number of Poles
3
Contactor Style
HVACR Definite Purpose Contactor
Contact Material
Silver Cadmium Oxide
Full Load Current - Resistive
50 A

Description

Definite Purpose Contactor, LED Lighting Current Rating Not Applicable, Coil Voltage 24V AC, Series Not Applicable, Number of Poles 3, NEMA Enclosure Rating No Enclosure, Tungsten Lighting Current Rating Not Applicable, Fluorescent Lighting Current Rating Not Applicable, Reversing Capability Non-Reversing, Frame Size Not Applicable, Horsepower @ Single Phase - 240V AC Not Rated, Horsepower @ Single Phase - 120V AC Not Rated, Full Load Current - Resistive 50 A, Full Load Current - Inductive 40 A
