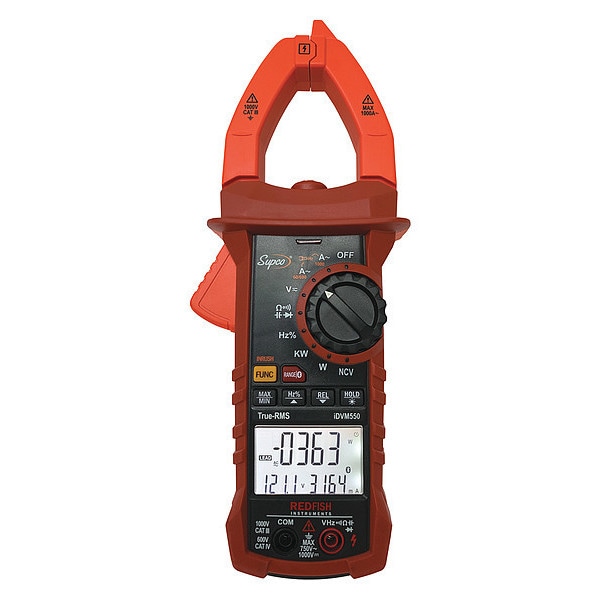

Supco Digital Clamp Meter, Yes, 1,000 A A, 1.5 in (38 mm) Jaw Capacity, CAT III 1000V Safety Rating IDVM550 - main

Digital Clamp Meter, Yes, 1,000 A A, 1.5 in (38 mm) Jaw Capacity, CAT III 1000V Safety Rating

  • Mfr # IDVM550

  • Zoro # G9642089

product price:  $336.99
/ea
Free Shipping & Returns

Key Features

Digital/Analog
Digital
Max. AC Amps
1,000 A
Clamp Meter Jaw Style
Clamp On
Max. DC Volts
1,000 V
Max. Ohms
60 megaohm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
IDVM550
Zoro #
G9642089
UPC #
687152259298
Country of Origin
United States

Dimensions

Manufacturers Warranty Length
1 yr
Max. Conductor Size
1,000 kcmil
Maximum Conductor Size
1,000 kcmil
Battery Size
9V

Details

Item
Digital Clamp Meter
Digital/Analog
Digital
Max. AC Amps
1,000 A
Clamp Meter Jaw Style
Clamp On
Max. DC Volts
1,000 V
Max. Ohms
60 megaohm
Jaw Capacity
1.5 in (38 mm)
Safety Rating
CAT III 1000V
Display
Yes
Jaw Opening
1.5 in
Max. DC Amps
No Range
Max. AC Volts
750 V
Calibration Frequency
50 to 60 Hz
Includes
Test Leads, Type K Thermocouple
Standards
CE, ETL
Peak Hold
Yes
Frequency Counter
10 Hz to 10 MHz
Audible Continuity
Yes
Diode Test
Yes
Bar Graph
No
AC Response
TRMS
Auto Ranging
Yes
Data Hold
Yes
Calibration Certificate
Not Included
Memory
Max/Min
Non-Contact Voltage Detector
Yes
Special Features
LCD Backlit Display, LED Non-Contact Voltage Sensor Indicator, Low Battery Indicator
Capacitance
99.99 mF
Battery Type
9V
Auto Power Off
Yes
Maximum AC Current Measurement
1,000 A
Maximum Capacitance Measurement
99.99 mF
Jaw Style
Clamp-Jaw
Bar Graph Included
No
Maximum Resistance Measurement
60 megaohm
Maximum AC Voltage Measurement
750 V
Instrument Counts
6000
AC Response Calculation
TRMS
Maximum DC Voltage Measurement
1,000 V
Parameters Measured
AC Current, AC Voltage, DC Voltage
Calibration Certificate Included
No
Data Logging
No
Inrush Current Measurable
Yes

Description

Digital Clamp Meter, Audible Continuity Yes, Safety Rating CAT III 1000V, AC Response Calculation TRMS, Maximum AC Current Measurement 1,000 A, Maximum AC Voltage Measurement 750 V, Maximum DC Voltage Measurement 1,000 V, Parameters Measured AC Current, AC Voltage, DC Voltage, Data Logging No, Jaw Opening 1.5 in, Jaw Style Clamp, Calibration Certificate Included No, Special Features LCD Backlit Display, LED Non-Contact Voltage Sensor Indicator, Low Battery Indicator, Data Hold Yes
