  11. Thermostat, 210 to 240, 2-51/64in.D, SPST
Shop All Fan and Limit Controls
Supco

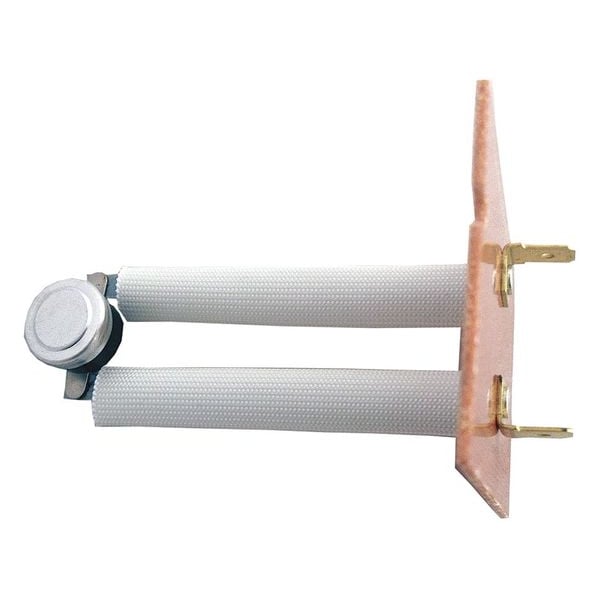

Thermostat, 210 to 240, 2-51/64in.D, SPST

product price: $13.49
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Temp. Range (F) 210 to 240
  • Switch Type SPST
  • Depth (In.) 2 51/64 in
  • Width (In.) 1 7/8 in
  • Switch Closes @ (F) 210 Degrees F
See all product information

Product Information

Dimensions

Depth (In.) 2 51/64 in
Width (In.) 1 7/8 in
Element Insertion Length (In.) 3 1/8 in
Overall Depth 2 3/4 in
Overall Width 1 7/8 in
Overall Height 2 3/4 in
Insertion Length 3 1/8 in

Details

Item Plenum Thermostat
Temp. Range (F) 210 to 240
Switch Type SPST
Switch Closes @ (F) 210 Degrees F
Switch Opens @ (F) 240 Degrees F
Resistive Amps @ 120V 15 A
Resistive Rating 240V 10
Differential 30
Inductive Amps @ 240V 1.5 A
Inductive Amps @ 120V 3 A
Switch Action Open on Rise
Minimum Control Temperature 210 Degrees F
Switch Closing Temperature 210 Degrees F
Reset Type Automatic Reset
Input Voltage 120V AC, 240V AC
Standards UL Listed
Series SHL
Resistive Amps @ 120V AC 15 A
Product Type Plenum Thermostat
Contact Form SPST
Maximum Control Temperature 240 Degrees F
Mounting Board Mount
Application Limit Control
Switch Opening Temperature 240 Degrees F
Resistive Amps @ 240V AC 10 A

Description

Plenum Thermostat, Product Type Plenum Thermostat, Application Limit Control, Contact Form SPST, Switch Action Open on Rise, Switch Opening Temperature 240 Degrees F, Switch Closing Temperature 210 Degrees F, Maximum Control Temperature 240 Degrees F, Minimum Control Temperature 210 Degrees F, Insertion Length 3 1/8 in, Input Voltage 120V AC, 240V AC, Overall Depth 2 3/4 in, Overall Height 2 3/4 in, Overall Width 1 7/8 in, Series SHL, Reset Type Automatic Reset, Resistive Amps @ 120V AC 15 A
