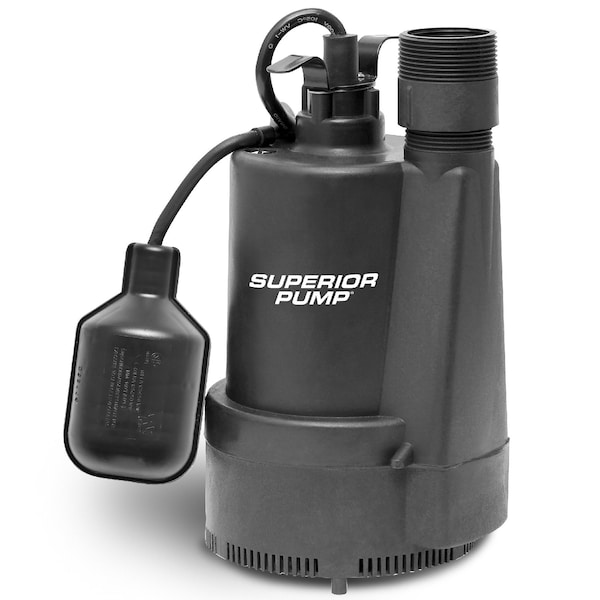

1/3HP Sump Pump, Reinforced Fiberglass Thermoplastic, Submersible, w/ Piggy-Back Tether Float Switch

  • Mfr # 92330

  • Zoro # G909989403


product price: $102.99
/ea
Free Shipping & Returns

Key Features

Cord Length
10 ft
Discharge NPT
1-1/4 in. MNPT
Housing Material
Thermoplastic
HP
1/3 HP
Impeller Material
Thermoplastic
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
92330
Zoro #
G909989403
UPC #
725113923304
Country of Origin
China

Dimensions

Cord Length
10 ft
Max. Diameter Solids
1/8"
Width
6 in
Length
6.5 in
Height
9 in
Max. Lifting Height
25 ft

Details

Discharge NPT
1-1/4 in. MNPT
Housing Material
Thermoplastic
HP
1/3 HP
Impeller Material
Thermoplastic
Includes
1-1/4 in. MNPT or 1-1/2 in. MNPT Adapter
Motor Type
PSC Motor
Voltage
120 V
Off Point
5 in
Amps
4.1 A
Switch Type
Piggy-Back Tether Float Switch
On Point
10 in
Pump Body Material
Thermoplastic
Max. Liquid Temp.
120° F
Standards
cCSAus; cULus
GPH 15'
1320
Discharge Type
Top
GPH 0'
2400
Discharge Location
Top
Max. Pressure
10.8 PSI
Impeller Design
Non-Clogging Open-Type Impeller
Flow Rate @ 0 Ft. of Head
2400 GPH
Power Source
AC Electric
Solids Handling
1/8 in

Description

This 1/3 HP heavy-duty submersible sump pump is built to last and designed for basement dewatering applications. It offers a maximum discharge flow rate of 2400 GPH at 0 feet of vertical lift and 1,680 GPH at 10 feet. The pump is constructed from fiberglass-reinforced thermoplastic and features an efficient, thermally protected continuous duty PSC motor with premium, 100% solid copper windings and dual O-ring motor seals for enhanced longevity. Equipped with a piggy-back tether float switch, this pump allows for both automatic and manual operation. It has undergone 100% factory testing and is backed by a 1-year limited warranty. Additionally, it is UL, CSA, and SSPMA certified, ensuring exceptional quality, safety, and performance. Featuring a bottom suction design, a thermoplastic impeller, and a serviceable intake screen, this fully submersible sump pump can handle solids up to 1/8 inch, which helps minimize clogging. It includes a 10-foot power cord for easy installation, has a 1-1/4 inch NPT discharge, and comes with a 1-1/2 inch NPT adapter. Superior Pump has been a family-owned and operated business since 1932, offering reliable water pump solutions customized to meet your specific needs. Located in St. Paul, MN, our customer service experts are available seven days a week to assist you. Our water pump solutions are recognized for their quality and durability, and we take pride in every product being Engineered to Perform and Built to Last®.


  • Maximum discharge flow rate 2400 GPH @ 0 ft. of vertical lift; 1680 GPH @ 10 ft. and engineered for reliable performance in sump applications requiring high lift performance (Maximum lift up to 25-ft.).
  • Efficient, PSC motor features premium 100% solid copper motor windings (not copper plated) for years of reliable motor performance. This pump is also designed with dual o-ring motor seals, to keep interior components protected, dry and running right.
  • This fully submersible sump pump features a bottom suction design and a thermoplastic non-clogging impeller. It efficiently removes water down to 1/2 inch of surface level and can handle solids up to 1/8 inch in size to reduce the risk of clogging. The reliable piggy-back tether float switch allows you to operate the pump manually or automatically, turning on at 10 inches and off at 5 inches (factory settings).
  • Superior Pumps are Built to Last® with quality in mind, and this model is 100% factory tested and backed with a 1 year limited warranty. UL, CSA and SSPMA Certified for safe and dependable performance.
  • Durable fiberglass reinforced thermoplastic sealed construction for long life. Lightweight, corrosion-resistant, strong and easily portable.
  • Reliable groundwater removal to prevent residential flooding.
  • The length you need for safe and convenient installation to the nearest GFCI outlet.
  • 1-1/4 in. NPT Discharge with 1-1/2 in. NPT adapter for high volume water removal and code compliance.
  • Engineered for high volume water removal, wherever you need it. Designed with a piggy-back style switch for easy bypass to run manually as a multi-purpose pump.
