  9. SuperChassis 1000W 3U Rackmount Server Chassis (Black)
This item is Discontinued.

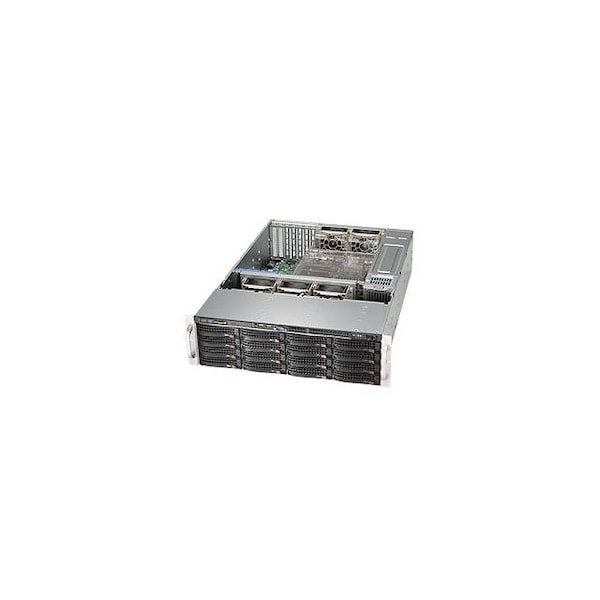

Supermicro SuperChassis 1000W 3U Rackmount Server Chassis (Black) CSE-836BE1C-R1K03B

SuperChassis 1000W 3U Rackmount Server Chassis (Black) (Discontinued)

  • Mfr # CSE-836BE1C-R1K03B
  • Zoro # G6715083
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CSE-836BE1C-R1K03B
Zoro #
G6715083
UPC #
672042176038
Country of Origin
Unknown

Dimensions

Width
17.2 in
Depth
25.5 in
Height
5.2 in

Details

Item
Server Case
Color
Black
Includes
1 x SAS3 12Gb/s Single Expander backplane with 16 SAS3 3.5" drive slots connected through 4 mini-SAS3 HD cable connectors, 2 for uplink and 2 for downlink,RoHS/REACH,PBF, 2 x 1U 1000W Redundant Power Supply Titanium W/PMbus 76x365x40mm,RoHS/REACH, 1 x PDB with longer 24pin for SC826B, 1 x SC835/836/936 Intel DP X9-X10 PC air shroud 1368x13/12x13MB, 1 x ROUND 16 pin TO 16 PIN RIBBON FP CABLE 75cm. 28AWG, 1 x 10.5\" , 4 PIN MIDDLE FAN POWER EXTENSION (PWM). 24AWG, 1 x Black DVD dummy cover for SC825, 836, 2 x 80x32 mm 6.7K RPM SC836 Rear Exhaust Fan w/ Housing, 3 x 80x80x38 mm 7K RPM Chassis Middle Fan w/ Housing, 1 x 836B rear dummy cover for 2 X 2.5\" HDD cage, 1 x Black USB/COM port tray for SC825, 836, 16 x Black gen 5.5 hot-swap 3.5\" HDD tray, 1 x Rail set, quick/quick, default for 2,3U 17.2\"W, 1 x Rail screw bag, 1 x 836B chassis rear window (to support the optional MCP-220-83605-0N)
Mounting
Rack
Number of Expansion Slots
7
Motherboard Supported
EATX
Number of Total Expansion Bays
16
Number of Fans Supported
5
Compatible Rack Unit
3U
Power Supply Installed
Yes
Power Supply Wattage
1000 W
Number of External 3.5" Bays
16
Power
1000 W

Description

SuperChassis CSE-836BE1C-R1K03B 1000W 3U Rackmount Server Chassis (Black)
