This item is Discontinued.

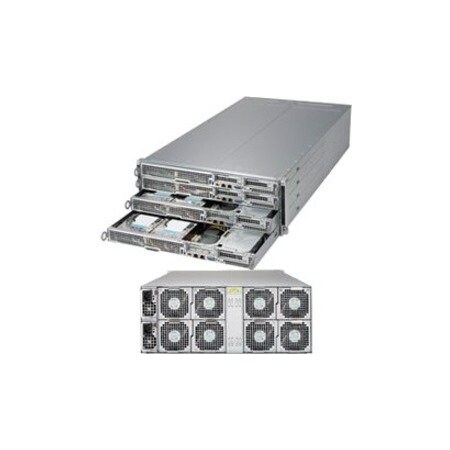

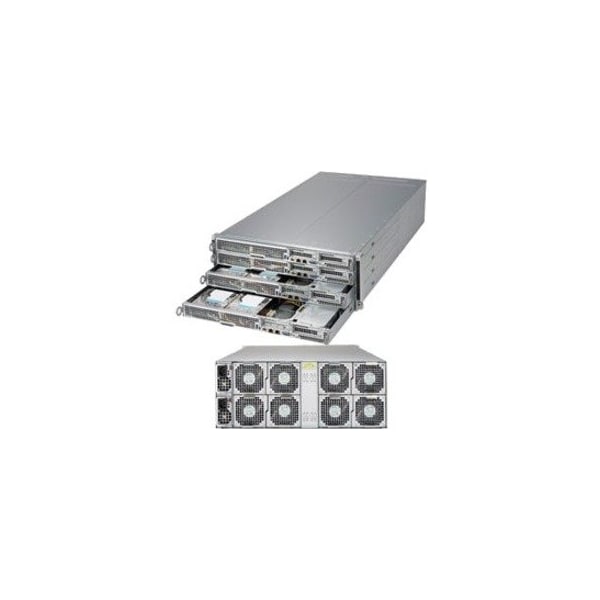

Supermicro Superserver F618H6-Ft+ - Rack-Mountable - No Cpu - 0 Gb - SYS-F618H6-FT+

Superserver F618H6-Ft+ - Rack-Mountable - No Cpu - 0 Gb - (Discontinued)

  • Mfr # SYS-F618H6-FT+
  • Zoro # G809557719
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SYS-F618H6-FT+
Zoro #
G809557719
UPC #
-
Country of Origin
China

Dimensions

Depth
35 in
Height
7 in
Width
17.6 in
Rack Height
4U

Details

Item
Server Barebone System
Input Voltage
230V AC, 120V AC
Power Supply
2000 W
Includes
4 x Super X10DRFF-CG Motherboard, 1 x 4U Chassis, 4 x BPN;SASADP;SAS827-H8;H8DTT;cable req, 8 x 4-port 1U CSE-801 cold storage backplane with thermistor and individual HDD power cycle, support up to 4x 3.5-inch SAS2/SATA3 HDD/SSD, 8 x 1-port 1U CSE-801 cold storage backplane with thermistor and individual HDD power cycle, support up to 1x 3.5-inch SAS2/SATA3 HDD/SSD, 4 x 2-port 1U CSE-801 cold storage backplane with thermistor and individual HDD power cycle, support up to 2x 3.5-inch SAS2/SATA3 HDD/SSD, 4 x PWYCB,2X4F/GPU to 3 2X2F,P4.2, 36/54/65CM, 18AWG, 5/12V, 4 x internal mini SAS HD to 4 SATA 50CM, S, w/50cm SB,HF,RoHS/REACH,PBF, 8 x INT P0.3 40p to 40p HS FPC 85 ohms impedance,11cm,0.2mm thick,RoHS/REACH, 4 x PWYCB,2X4F/GPU to 2 2X2F,P4.2,39/41CM+2 RA SATA PWR 29CM,18G, 4 x 81CM 30AWG SATA S-S cable, 8 x 45cm SATA cable S-RA 30AWG,RoHS/REACH, 4 x internal 6G mini SAS HD to 4 SATA, 75/75/90/90cm w/75cm SB, S. 30AWG,HF,RoHS/REACH,PBF, 4 x 31cm SATA cable S-RA 30AWG,RoHS/REACH, 1 x CAUTION LABEL FOR REDUNDANT PWR SYSTEMS, 4 x ,RoHS/REACH LHS 1U PCI-E x8 (F2), 4 x LHS Riser Card with PCI-Ex8,RoHS/REACH (F1), 4 x 1U Passive CPU Heat Sink for X9, X10 Systems Equipped w/ a Narrow ILM MB, 4 x 1U Passive Front CPU Heat Sink w/ a Side Air Channel for X9, X10 Systems Equipped with a Narrow ILM MB, 2 x AC-DC 2000W, Titanium Level, Redundancy, 1U, PMBus 1.2, +12V/+5Vsb, 360x76x40mm,HF,RoHS/REACH
Color
Black
Number of Power Supplies Installed
2
Graphics Controller Model
AST2400
Ethernet Technology
Gigabit Ethernet
Number of Processors Supported
2
Graphics Controller Manufacturer
ASPEED
Max. Memory Supported
2 TB
Processor Supported
Xeon
Mounting
Rack
Number of USB 3.0 Ports
2
Memory Technology
DDR4 SDRAM
Chipset Model
C612
Processor Socket
Socket R3 LGA-2011
Controller Type
12Gb/s SAS, Serial ATA/600
Chipset Manufacturer
Intel
Number of SAS Interfaces
8
RAID Supported
Yes
Number of Total Expansion Bays
12
Number of USB Ports
2
Number of SATA Interfaces
10
Number of 3.5" Bays
12
Number of Expansion Slots
2
Memory Standard
DDR4-2133/PC4-17000
Number of PCI Express x8 Slots
2
Number of Nodes
4
Number of Memory Slots
16
64-bit Processing
Yes
Green Environmental Attribute
Environmentally Friendly
