  9. SuperServer Intel Xeon D-1541 200W 1U RackmountServer BareboneSyst
This item is Discontinued.
Supermicro SuperServer Intel Xeon D-1541 200W 1U RackmountServer BareboneSyst SYS-5018D-FN4T

SuperServer Intel Xeon D-1541 200W 1U RackmountServer BareboneSyst (Discontinued)

  • Mfr # SYS-5018D-FN4T
  • Zoro # G6263513
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SYS-5018D-FN4T
Zoro #
G6263513
UPC #
672042188284
Country of Origin
Unknown

Dimensions

Width
17.2 in
Depth
9.8 in
Height
1.7 in
Rack Height
1U

Details

Voltage
230V AC, 120V AC
Features
64-bit Processing; Environmentally Friendly; RAID Supported
Color
Black
Includes
1 x Super X10SDV-8C-TLN4F Motherboard, 1 x 1U Chassis, 1 x mylar air shroud for SC504/505 with X10SDV,HF,RoHS/REACH, 1 x 35CM end to end, SATA CABLE, PB FREE, 26AWG, flat, 1 x Riser card bracket for slot-7 in SC504, 1 x 4028mm 13K RPM 4-PIN PWM FAN for SC813MF, SC113M, 1 x Fan Warning Label 30x11mm,RoHS/REACH, 1 x SYS-5018D-FN4T, QRG,HF,RoHS/REACH, 1 x 1U I/O Shield for A1SRM-LN7F on SC510 with EMI Gasket,RoHS/REACH, 1 x RSC-RR1U-E16 with PCI-E x16 output, 1 x 1U 200W Multi-output 80Plus Gold PWS
Memory Standard
DDR4-2133/PC4-17000
Number of Power Supplies Installed
1
Number of Total Memory Slots
4
Number of USB Ports
2
Processor Supported
Xeon
Number of USB 3.0 Ports
2
Item
Server Barebone System
Number of Processors Supported
1
Maximum Memory Supported
128 GB
Controller Type
Serial ATA/600
Number of PCI Express x16 Slots
1
Ethernet Technology
Fast Ethernet, 10 Gigabit Ethernet
Mounting
Rack
Processor Socket
Socket BGA-1667
Memory Technology
DDR4 SDRAM
Number of Expansion Slots
2
Power Supply
200 W
Number of PCI Express x4 Slots
1
Number of SATA Interfaces
6
64-bit Processing
Yes
Number of Memory Slots
4
Max. Memory Supported
128 GB
RAID Supported
Yes
Graphics Controller Model
AST2400
Green Environmental Attribute
Environmentally Friendly
Graphics Controller Manufacturer
ASPEED
Max. Power Supply Wattage
200 W

Description

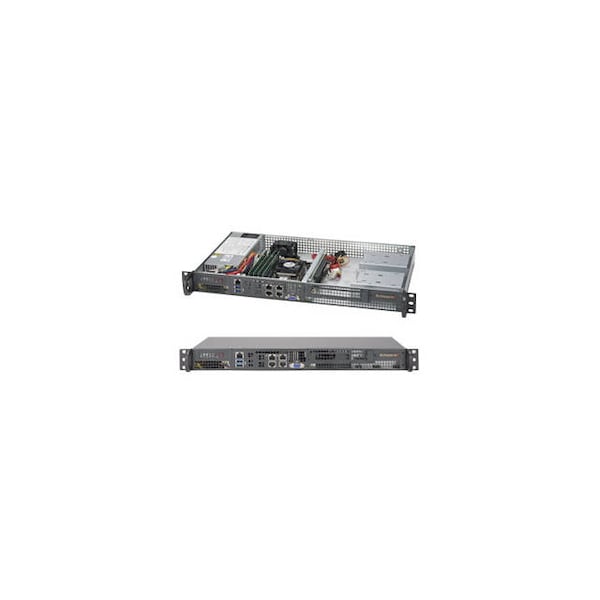

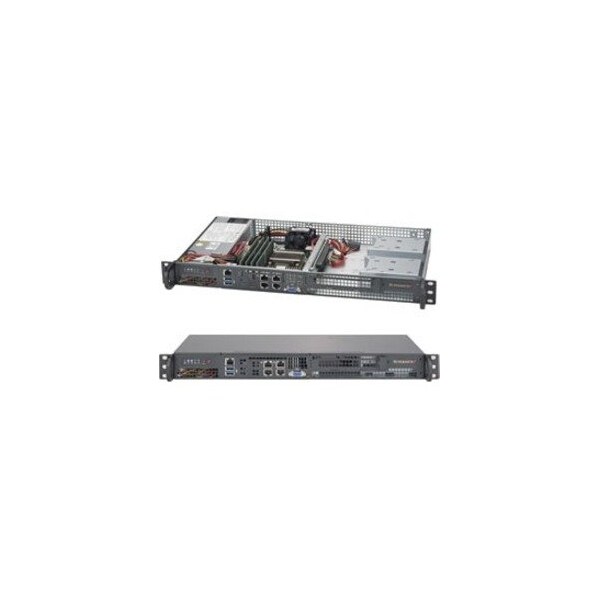

SuperServer SYS-5018D-FN4T Intel Xeon D-1541 200W 1U Rackmount Server Barebone System (Black)
