This item is Discontinued.

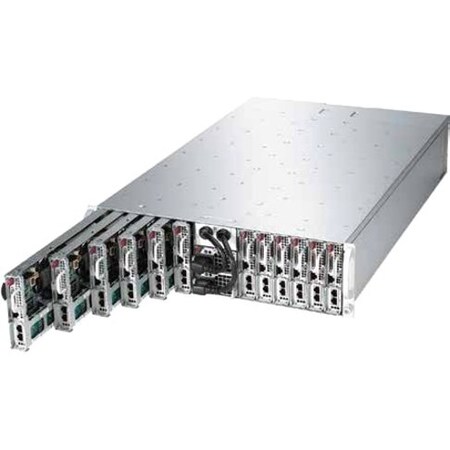

Supermicro SuperServer Twelve Node LGA1150 1620W 3U RackmountServer BareboneSyst SYS-5038ML-H12TRF

SuperServer Twelve Node LGA1150 1620W 3U RackmountServer BareboneSyst (Discontinued)

  • Mfr # SYS-5038ML-H12TRF
  • Zoro # G6261124
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SYS-5038ML-H12TRF
Zoro #
G6261124
UPC #
672042135844
Country of Origin
Unknown

Dimensions

Width
17.5 in
Height
5.2 in
Depth
29.5 in
Rack Height
3U

Details

Voltage
220V AC, 110V AC
Features
Environmentally Friendly; Network (RJ-45); RAID Supported; VGA
Standards
ACPI 1.0 / 2.0
Includes
12 x Super X10SLE-F Motherboard, 1 x 3U Chassis, 1 x 11.5CM KVM/SUVI 36 PIN TO 9 PIN/15 PIN 2USB, 30/28AWG, 12 x 8Pin to 2SATA Power cable 12cm and 58cm. 18AWG, 12 x 55cm SATA cable RA-RA 30AWG, 12 x 70cm SATA cable RA-RA 30AWG, 12 x 46cm 12 pin to 12 pin control cable for MicroCloud 28AWG, 12 x LP CPU Heat Sink for 12-node Micro Cloud Series Servers, 1 x CSE939 MicroCloud (12 node) hotswap backplane, 12 x includes riser and bracket (AOC-CGP-i2M), 12 x 939 MicroCloud 12 nodes power board between MB and backplane, 2 x 1600W REDUNDANT POWER MODULE
Color
Black
Controller Type
Serial ATA/600, Serial ATA
RAID Levels
0, 1, 10
Number of USB 2.0 Ports
2
Ethernet Technology
Gigabit Ethernet
Number of USB Ports
3
Mounting
Rack
Number of Nodes
12
Memory Technology
DDR3 SDRAM
Maximum Memory Supported
32 GB
Item
Server Barebone System
Number of PCI Express x8 Slots
1
Memory Standard
DDR3-1600/PC3-12800
Number of VGA Ports
1
Processor Socket
Socket H3 LGA-1150
Number of Processors Supported
1
Number of USB 3.0 Ports
1
Processor Supported
Core i3, Xeon, Celeron, Pentium
Number of SATA Interfaces
4
Number of Total Memory Slots
4
Power Supply
1620 W
Number of Expansion Slots
1
Chipset Manufacturer
Intel
Graphics Controller Manufacturer
ASPEED
Number of Memory Slots
4
Network (RJ-45)
Yes
VGA
Yes
Green Environmental Attribute
Environmentally Friendly
Chipset Model
C224
Max. Memory Supported
32 GB
RAID Supported
Yes
Graphics Controller Model
AST2400
Max. Power Supply Wattage
1620 W

Description

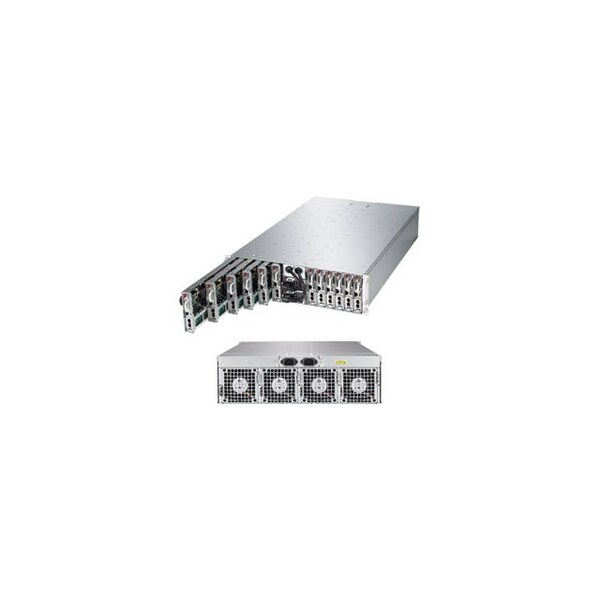

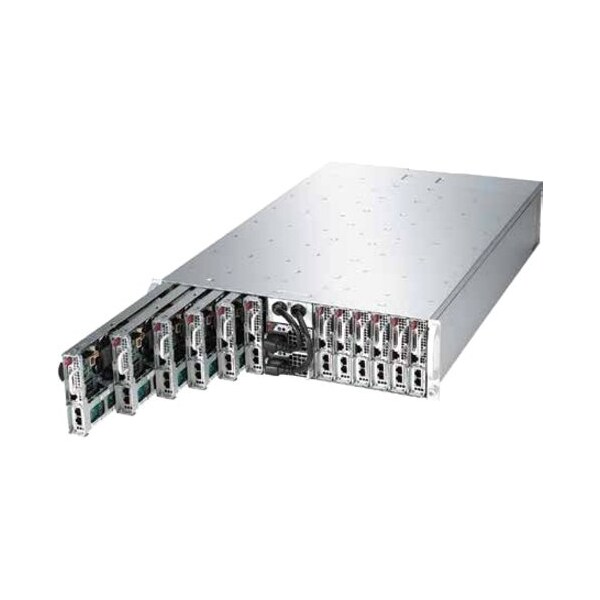

SuperServer SYS-5038ML-H12TRF Twelve Node LGA1150 1620W 3U Rackmount Server Barebone System (Black)
