This item is Discontinued.

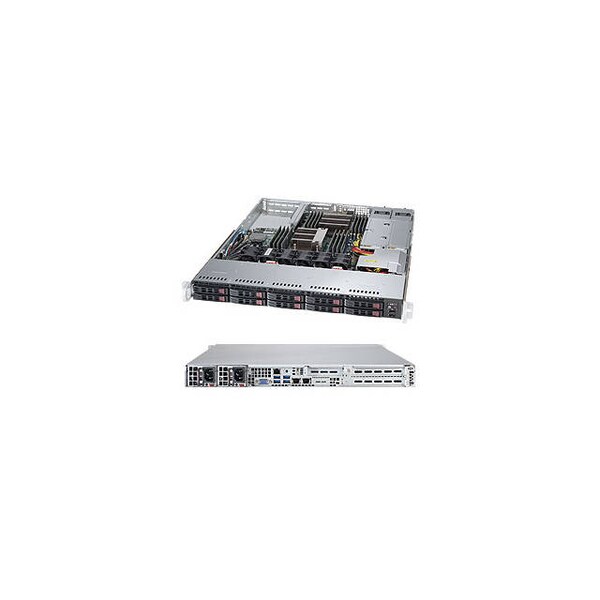

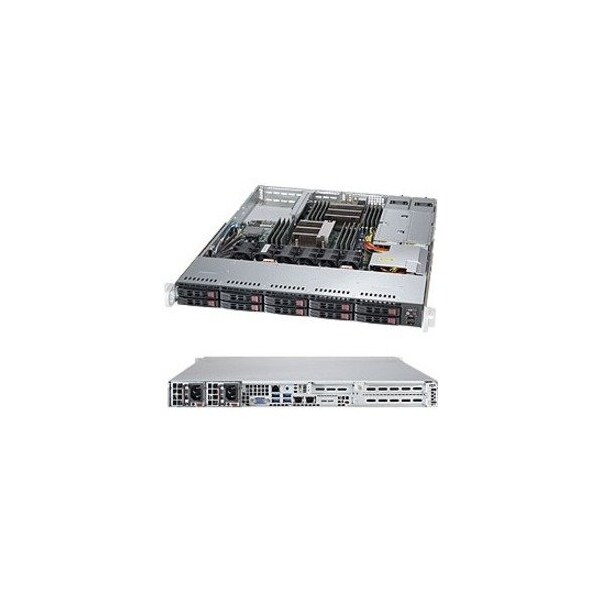

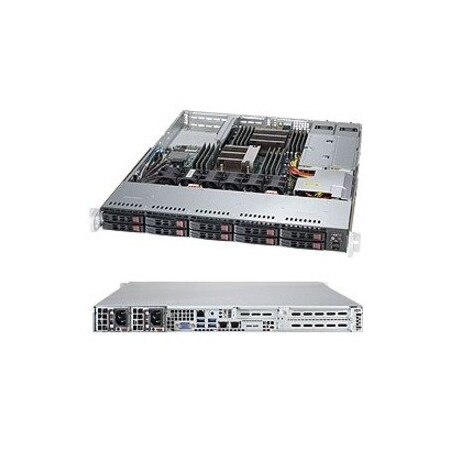

Supermicro SY-128RWTR SuperServerDual LGA2011 700W/750W 1U RackmountServer SYS-1028R-WTR

SY-128RWTR SuperServerDual LGA2011 700W/750W 1U RackmountServer (Discontinued)

  • Mfr # SYS-1028R-WTR
  • Zoro # G6253948
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SYS-1028R-WTR
Zoro #
G6253948
UPC #
672042157495
Country of Origin
Unknown

Dimensions

Width
17.2 in
Depth
23.5 in
Height
1.7 in
Rack Height
1U

Details

Voltage
230V AC, 120V AC
Standards
ACPI 1.0, ACPI 2.0, ACPI 3.0, ACPI 4.0
Color
Black
Includes
1 x Super X10DRW-i Motherboard, 1 x 1U Chassis, 1 x BPN-SAS-116TQ, 1 x 8 pin to 8 pin round SGPIO cable, 61.5cm, 28AWG, pinout 1-1,RoHS/REACH, 2 x 38cm SATA cable S-RA 30AWG,RoHS/REACH, 2 x 45cm SATA cable S-RA 30AWG,RoHS/REACH, 1 x 8 pin to 8 pin round SGPIO cable, 27cm, 28AWG, pinout 1-1,RoHS/REACH, 1 x 8 pin to 8 pin round SGPIO cable, 40cm, 28AWG, pinout 1-1,RoHS/REACH, 2 x 55cm SATA cable S-RA 30AWG, 2 x 29cm 30AWG SATA S-S cable, 2 x 31cm SATA cable S-RA 30AWG,RoHS/REACH, 1 x RSC-R1UW-2E16-O-P, 1 x 1U Passive Front CPU Heat Sink w/ a Side Air Channel for X9, X10 Systems Equipped with a Narrow ILM MB, 1 x 1U High Performance Passive CPU Heat Sink for X9, X10 Systems Equipped w/ a Narrow ILM MB, 2 x 1U 750W redundant power width 54.5mm(Platinum),HF,RoHS/REACH,PBF
Features
64-bit Processing; Environmentally Friendly; Network (RJ-45); QuickPath Interconnect Supported; RAID Supported; VGA
Memory Technology
DDR4 SDRAM
Item
Server Barebone System
Number of USB Ports
6
Number of SATA Interfaces
10
Number of PCI Express x16 Slots
2
Mounting
Rack
Number of PCI Express x8 Slots
1
Number of USB 3.0 Ports
6
QuickPath Interconnect
9.60 GT/s
RAID Levels
0, 1, 5, 10
Ethernet Technology
Gigabit Ethernet, Fast Ethernet
Number of Processors Supported
2
Memory Standard
DDR4-2133/PC4-17000
Number of Internal 2.5" Bays
10
Number of Expansion Slots
3
Maximum Memory Supported
1 TB
Controller Type
Serial ATA/600
Number of Total Expansion Bays
10
Processor Socket
Socket LGA 2011-v3
Processor Supported
Xeon
Number of Total Memory Slots
16
Power Supply
750 W
Number of Power Supplies Installed
2
Chipset Manufacturer
Intel
Number of Memory Slots
16
Network (RJ-45)
Yes
Graphics Controller Manufacturer
ASPEED
RAID Supported
Yes
Max. Power Supply Wattage
750 W
Graphics Controller Model
AST2400
Max. Memory Supported
1 TB
Green Environmental Attribute
Environmentally Friendly
Chipset Model
C612 Express
VGA
Yes
QuickPath Interconnect Supported
Yes
64-bit Processing
Yes

Description

SuperServer SYS-1028R-WTR Dual LGA2011 700W/750W 1U Rackmount Server Barebone System (Black)
