  9. SY-228TDTT SuperServer Two Node Dual LGA2011 1280W 2U RackmountServer
This item is Discontinued.

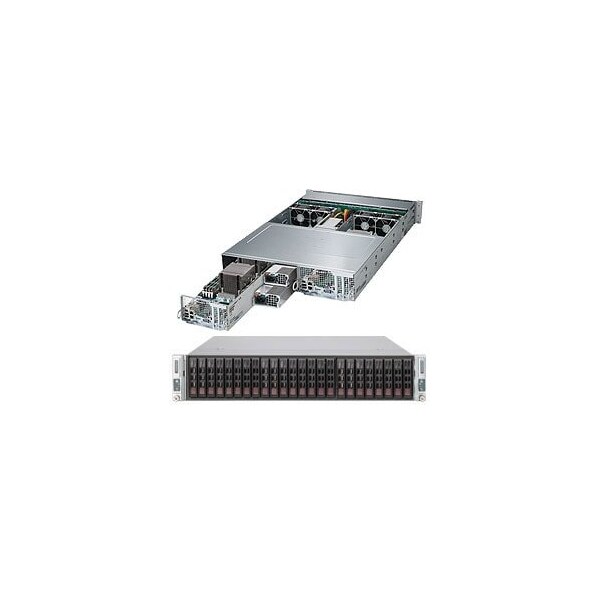

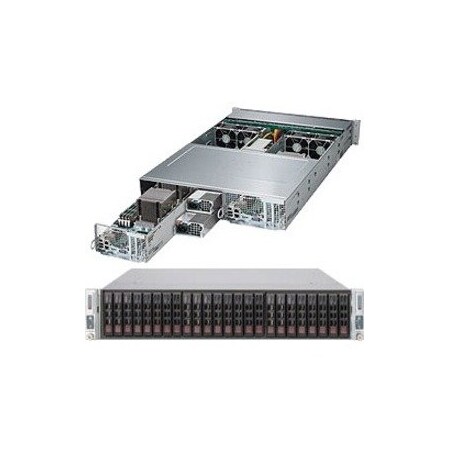

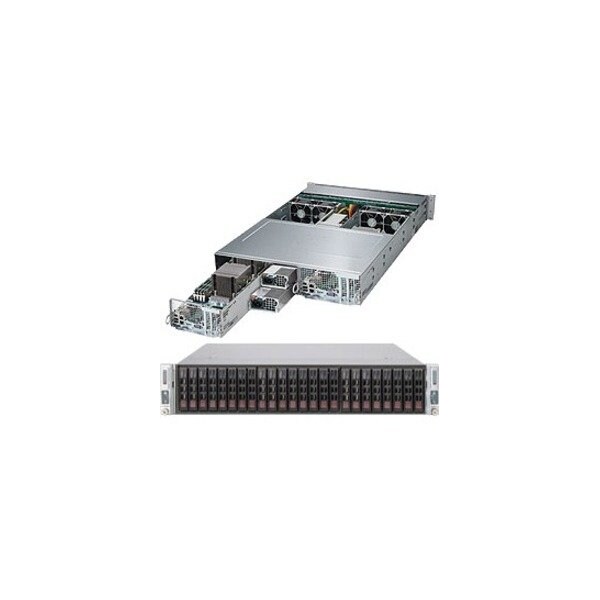

Supermicro SY-228TDTT SuperServer Two Node Dual LGA2011 1280W 2U RackmountServer SYS-2028TP-DTTR

SY-228TDTT SuperServer Two Node Dual LGA2011 1280W 2U RackmountServer (Discontinued)

  • Mfr # SYS-2028TP-DTTR
  • Zoro # G6260302
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SYS-2028TP-DTTR
Zoro #
G6260302
UPC #
672042164950
Country of Origin
Unknown

Dimensions

Depth
28.5 in
Width
17.3 in
Height
3.5 in
Rack Height
2U

Details

Voltage
120V AC, 230V AC
Includes
2 x Super X10DRT-PT Motherboards, (1) 2U Chassis, (2) 8 SATA 3 ports daughter card for TwinPro,RoHS/REACH,PBF, (1) RoHS/REACH,PBF 2U Twin Backplane, support 24 SAS3/SATA3 HDD (2.5") with Hot Swapping. Per node for 12 HDDs. PWM fan control, HDD spin up and failure LED supported., (4) 2U Passive CPU Heat Sink for X9, X10 Generation Systems Equipped w/ a Narrow ILM MB, (2) 1U 1280W, redundant single output power supply
Color
Black
Standards
ACPI 1.0, ACPI 2.0
Features
64-bit Processing; Environmentally Friendly; Network (RJ-45); QuickPath Interconnect Supported; RAID Supported; VGA
Number of Total Memory Slots
16
Number of Total Expansion Bays
8
Number of USB 3.0 Ports
2
Maximum Memory Supported
1 TB
Number of Expansion Slots
3
Mounting
Rack
Item
Server Barebone System
Number of PCI Express x8 Slots
1
Number of Processors Supported
2
Memory Standard
DDR4-2133/PC4-17000
RAID Levels
0, 1, 5, 10
Processor Supported
Xeon
Memory Technology
DDR4 SDRAM
Power Supply
1280 W
Number of PCI Express x16 Slots
2
Number of SATA Interfaces
8
QuickPath Interconnect
9.60 GT/s
Number of Power Supplies Installed
2
Controller Type
Serial ATA/600
Number of Nodes
2
Ethernet Technology
Fast Ethernet, 10 Gigabit Ethernet
Processor Socket
Socket LGA 2011-v3
Number of USB Ports
2
Number of Internal 2.5" Bays
8
Green Environmental Attribute
Environmentally Friendly
Network (RJ-45)
Yes
Chipset Model
C612 Express
64-bit Processing
Yes
Max. Power Supply Wattage
1280 W
Chipset Manufacturer
Intel
Max. Memory Supported
1 TB
Direct Media Interface Supported
No
Graphics Controller Model
AST2400
Number of Memory Slots
16
Graphics Controller Manufacturer
ASPEED
QuickPath Interconnect Supported
Yes
VGA
Yes
RAID Supported
Yes

Description

SuperServer SYS-2028TP-DTTR Two Node Dual LGA2011 1280W 2U Rackmount Server Barebone System (Black)
