  9. X11SAE-B LGA1151/Intel C236/DDR4/SATA3&USB3.1/A&2GbE/ATX Motherboard

This item is Discontinued.

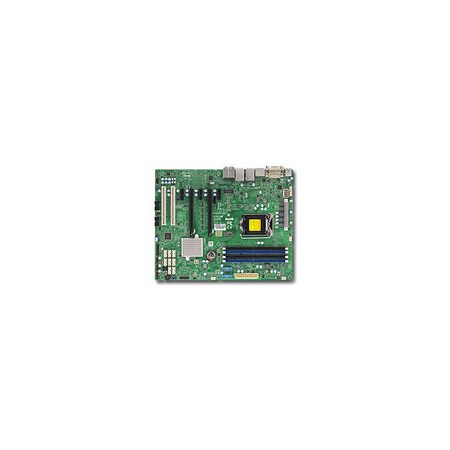

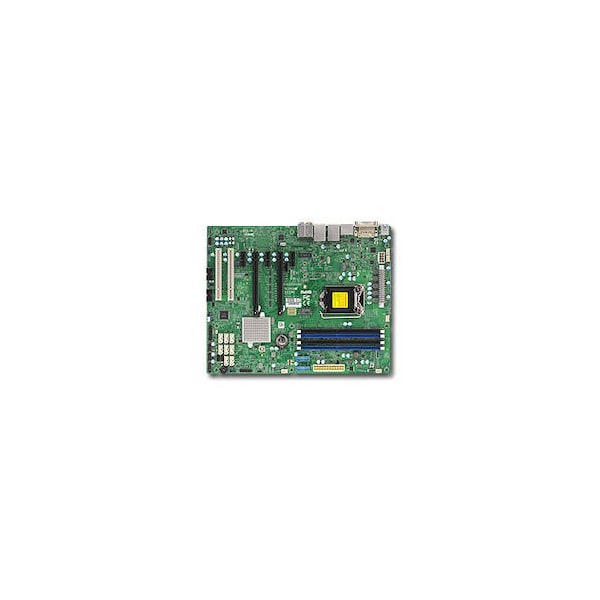

Supermicro X11SAE-B LGA1151/Intel C236/DDR4/SATA3&USB3.1/A&2GbE/ATX Motherboard MBD-X11SAE-B

X11SAE-B LGA1151/Intel C236/DDR4/SATA3&USB3.1/A&2GbE/ATX Motherboard (Discontinued)

  • Mfr # MBD-X11SAE-B
  • Zoro # G5779323
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
MBD-X11SAE-B
Zoro #
G5779323
UPC #
672042204786
Country of Origin
Unknown

Dimensions

Width
12 in
Depth
9.6 in

Details

Item
Workstation Motherboard
Features
Environmentally Friendly
Number of PCI Express x16 Slots
2
Memory Technology
DDR4 SDRAM
RAID Supported
Yes
Gigabit Ethernet
Yes
Memory Form Factor
UDIMM, DIMM
Processor Socket
Socket H4 LGA-1151
Controller Type
Serial ATA/600
Processor Supported
Xeon, Core i3, Core i5, Core i7
Max. Memory Supported
64 GB
Memory Speed Supported
1866 MHz, 1600 MHz, 2133 MHz
Total Processor Supported
1
DVI
Yes
Number of Onboard USB Ports
10
Number of Onboard USB 3.0 Ports
4
RAID Levels
10, 1, 0, 5
HDMI
Yes
Number of USB 3.0 Ports
2
Number of Expansion Slots
7
Number of SATA Interfaces
8
Number of USB 3.1 Ports
2
Compatibility
Supermicro Chassis: Mid/Mini Tower Chassis: SC732D4-903B, SC732D4-865B 4U / Tower Chassis: SC743TQ-1200B-SQ SuperServer(s) Model(s): SYS-5039A-IL
Onboard Video
CPU Dependent Video
Number of Memory Slots
4
Audio Channels
7.1
Number of USB Ports
6
DisplayPort
Yes
Number of PCI Express x1 Slots
3
Number of PCI Express Slots
5
Number of M.2 Interfaces
1
Graphics Controller Manufacturer
Intel
Green Environmental Attribute
Environmentally Friendly
Chipset Model
C236
Chipset Manufacturer
Intel

Description

X11SAE-B LGA1151/ Intel C236/ DDR4/ SATA3&USB3.1/ A&2GbE/ ATX Motherboard
