  11. Surge Protection Device, 3 Phase, 240V AC

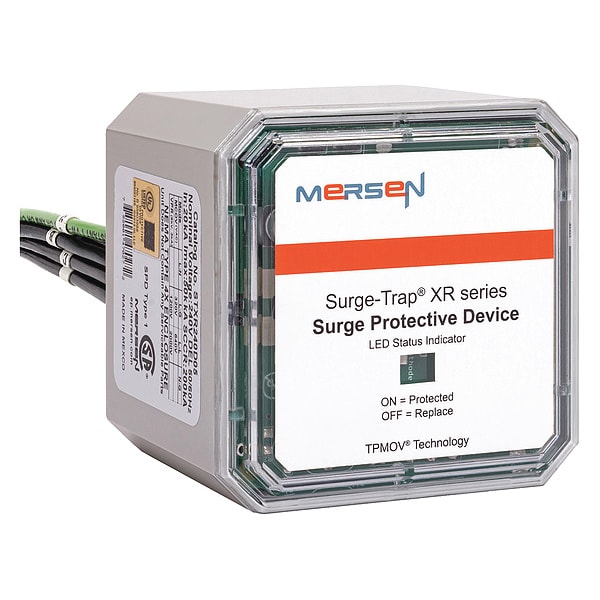

Surge Trap Surge Protection Device, 3 Phase, 240V AC STXR240D05 - main

Surge Protection Device, 3 Phase, 240V AC

  • Mfr # STXR240D05

  • Zoro # G5526404

product price: $359.79
/ea
Free Shipping & Returns

Key Features

Mounting Style
Chase Nipple/Panel
Phase
3
Voltage
240V AC
Voltage Protection Rating
1200V (L-G), 2000V (L-L)
Modes of Protection
L-G, L-L
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
STXR240D05
Zoro #
G5526404
UPC #
782001469900
Country of Origin
Mexico

Dimensions

Length
3.35 in
Depth
4 in
Width
3.35 in
Chase Nipple Size
3/4 in

Details

Item
Surge Protection Device
Mounting Style
Chase Nipple/Panel
Phase
3
Voltage
240V AC
Voltage Protection Rating
1200V (L-G), 2000V (L-L)
Modes of Protection
L-G, L-L
Max. Surge Current per Mode
50 kA
Max. Surge Current per Phase
50 kA
Nominal Discharge Current
20 kA
Short Circuit Current Rating
200kA
Modular
No
Filtering
No
Max. Continuing Operating Voltage
320V AC
Enclosure NEMA Rating
NEMA 4X
Enclosure Material
Polycarbonate
Wire Gauge
10 AWG
Standards
ANSI, UL Listed CSA Approved, RoHS, Type 1 or 2
Modular / Nonmodular
Nonmodular
UL SPD Type
Type 1/2
Min. Operating Temp.
-40 Degrees F
Color
Gray
System Connection
Parallel
Max. Operating Temp.
185 Degrees F
Basic Material
Nonmetallic
Includes Surge Counter
No
Installation Mounting
Panel Mount
Max Discharge Current Imax 8 20
50 kA per phase
Mcov L-G
320 V
Max Storage Temp
85 °C
Frequency Hz
50/60 Hz
System Configuration
3-Phase Delta
Wire Connections
Pre-wired
Flammability Rating
UL94-5VA
Max Operating Temp
85 °C
Mcov L-L
640 V
Min Operating Temp
-40 °C
Min Storage Temp
-40 °C
Ac Or Dc
AC
Includes
LED Ind

Description

Surge Protection Device, Nonmetallic, Chase Nipple Size 3/4 in, Gray, Depth 4 in, Enclosure Material Polycarbonate, Enclosure NEMA Rating 4X
