  11. Surge Protection Device, 3 Phase, 480V AC

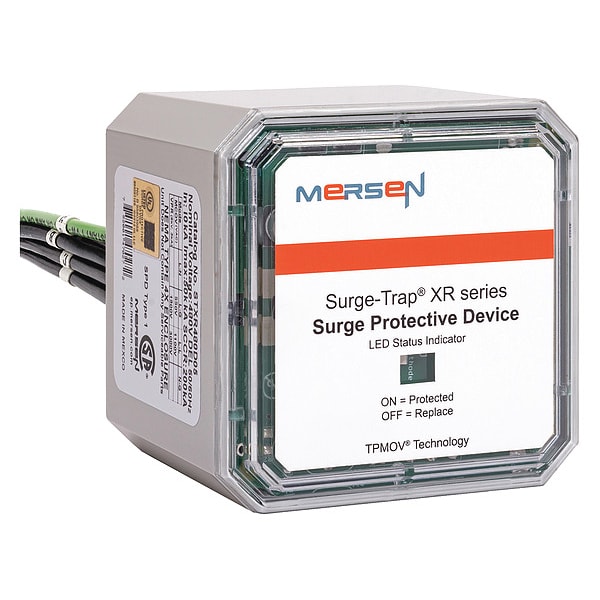

Surge Trap Surge Protection Device, 3 Phase, 480V AC STXR480D05 - main

Surge Protection Device, 3 Phase, 480V AC

  • Mfr # STXR480D05

  • Zoro # G5526228

product price: $359.79
/ea
Free Shipping & Returns

Key Features

Mounting Style
Chase Nipple/Panel
Phase
3
Voltage
480V AC
Voltage Protection Rating
1800V (L-G), 3000V (L-L)
Modes of Protection
L-G, L-L
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
STXR480D05
Zoro #
G5526228
UPC #
782001469917
Country of Origin
Mexico

Dimensions

Length
3.35 in
Depth
4 in
Width
3.35 in
Chase Nipple Size
3/4 in

Details

Item
Surge Protection Device
Mounting Style
Chase Nipple/Panel
Phase
3
Voltage
480V AC
Voltage Protection Rating
1800V (L-G), 3000V (L-L)
Modes of Protection
L-G, L-L
Max. Surge Current per Mode
50 kA
Max. Surge Current per Phase
50 kA
Nominal Discharge Current
10 kA
Short Circuit Current Rating
200kA
Modular
No
Filtering
No
Max. Continuing Operating Voltage
550V AC
Enclosure NEMA Rating
NEMA 4X
Enclosure Material
Polycarbonate
Wire Gauge
10 AWG
Modular / Nonmodular
Nonmodular
Standards
ANSI, UL Listed CSA Approved, RoHS, Type 1 or 2
Min. Operating Temp.
-40 Degrees F
Color
Gray
Max. Operating Temp.
185 Degrees F
System Connection
Parallel
UL SPD Type
Type 1/2
Basic Material
Nonmetallic
Includes Surge Counter
No
System Configuration
3-Phase Delta
Installation Mounting
Panel Mount
Mcov L-L
1100 V
Ac Or Dc
AC
Max Discharge Current Imax 8 20
50 kA per phase
Flammability Rating
UL94-5VA
Mcov L-G
550 V
Max Storage Temp
85 °C
Max Operating Temp
85 °C
Wire Connections
Pre-wired
Min Operating Temp
-40 °C
Frequency Hz
50/60 Hz
Min Storage Temp
-40 °C
Includes
LED Ind

Description

Surge Protection Device, Nonmetallic, Chase Nipple Size 3/4 in, Gray, Depth 4 in, Enclosure Material Polycarbonate, Enclosure NEMA Rating 4X
