Shop SYSTEM SENSOR

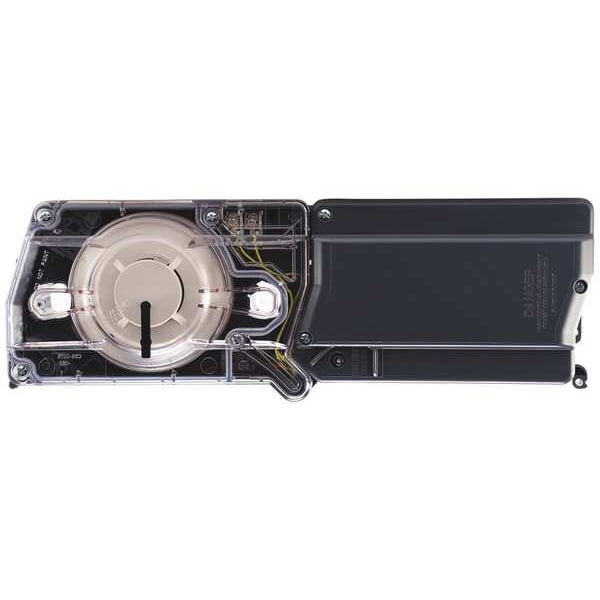

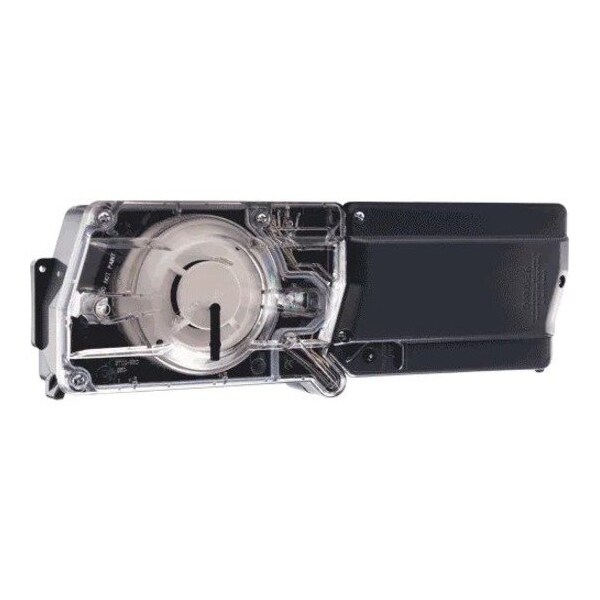

Duct Smoke Detector, 14-1/4" L, 2-1/4" D

  • Mfr # DUCTSD

  • Zoro # G1797028

product price:
$
253.99
/ea
Free Shipping & Returns

Key Features

Power Source
Removable Battery
Overall Width
2.25 in
Overall Height
4.75 in
Maximum Operating Temperature
158 Degrees F
Includes
Cover Integrated Smoke Test Port
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
DUCTSD
Zoro #
G1797028
UPC #
783863047336
Country of Origin
Mexico
Item
Duct Smoke Detector
Power Source
Removable Battery
Maximum Operating Temperature
158 Degrees F
Includes
Cover Integrated Smoke Test Port
Standards
CSFM, FM, UL
Ambient Temp. Limits (F)
-4 Degrees to 158 Degrees F
Alarm State (mA)
135 mA
Voltage
120V AC, 24V DC
For Use With
All System Sensor Remote Test Accessories, Fire Alarm Panel
Air Velocity (FPM)
100 to 4000 fpm
Alarm Aux. Contact @ 30VDC
2 A
Standby State (mA)
65 mA
Type
Smoke Detector
Alarm Current
135mA RMS @ 24V AC, 35mA RMS @ 120V AC, 65mA @ 24V DC
Finish
Unfinished
Compatible With
HVAC Systems Monitoring
Humidity Range
0 to 95% RH
Detects
Smoke
Minimum Operating Temperature
-4 Degrees F
Mount Type
Duct
Humidity Operating Range
0% to 95% RH
Sensor Type
Photoelectric
DC Contact Rating
65 mA @ 24V
Current Rating
65 mA @ 24V DC
Detector Type
Smoke Detector
Shape
Rectangular
AC Contact Rating
135 mA @ 24V, 35 mA @ 120V
Voltage Rating
120V AC, 24V AC/DC
Relative Humidity - Maximum
95 %
Relative Humidity - Minimum
0 %
Power Source - TS Only
Removable Battery
Power Source - old
Removable Battery

Description

Duct Smoke Detector, Smoke Detector, Finish Unfinished, Duct Mounting, Alarm Current 65mA @ 24VDC, 135mA RMS @ 24VAC, 35mA RMS @ 120VAC, Depth (In.) 2-1/4, Height (In.) 4-3/4, Length (In.) 14-1/4, Tube Length (Ft.) 1, Width (In.) 2-1/4, Ambient Temp. Limits (F) -4 to 158 Degrees , Air Velocity (FPM) 100 to 4000, Alarm Aux. Contact @ 30VDC 2A, Alarm State (mA) 135, Humidity Range ( Percent RH) 0 to 95, Standby State (mA) 65, Voltage 24VDC, 120VAC, Standards UL, FM, CSFM, Includes Exhaust Tube
