Shop SYSTEM SENSOR

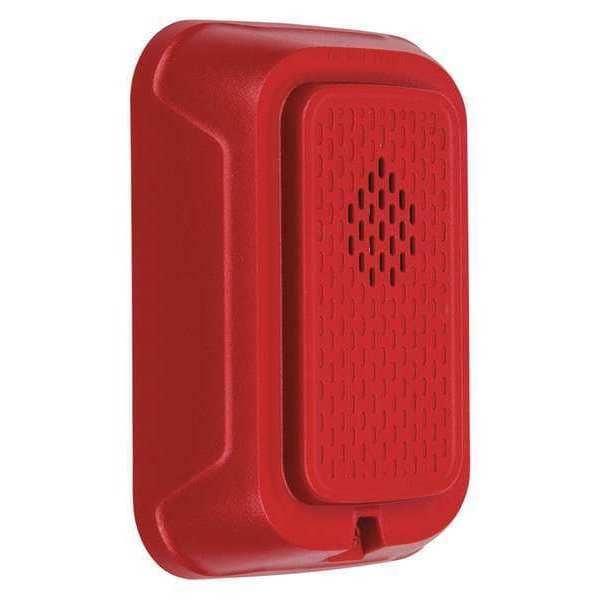

Horn, Marked Fire, Red

  • Mfr # HRL
  • Zoro # G9912981
product price:
$
37.59
/ea

Key Features

Type
Marked Fire
Standards
CSFM Compliant 7135-1653:0503, CSFM Compliant 7135-1653:0504, FM 3057072, FM 3057383, UL Listed S4011, UL Listed S5512, ULC Listed
Mounting
Wall
Voltage
12V, 24V
Includes
Mounting Plate
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
HRL
Zoro #
G9912981
UPC #
783863047619
Country of Origin
Mexico
Item
Horn
Type
Marked Fire
Standards
CSFM Compliant 7135-1653:0503, CSFM Compliant 7135-1653:0504, FM 3057072, FM 3057383, UL Listed S4011, UL Listed S5512, ULC Listed
Mounting
Wall
Voltage
12V, 24V
Includes
Mounting Plate
Alarm State (mA)
75 to 90 mA
For Use With
Fire Alarm Panel
Ambient Temp. Limits (F)
32 Degrees to 120 Degrees F
Standby Current (uA)
0 uA
Humidity Range (% RH)
10 to 93% RH
Finish
Red
Peak Output (dBA)
90 dBA
Standby State (mA)
0 mA
Product Type
Horn
Application
Indoor, Industrial
Color
Red
Features
Horn Rated at 88+ dBA at 16 V, Tamper-Resistant Construction, Temporal and Non-Temporal Tones
Material
Plastic
Legend
FIRE
For Location
Indoor
Includes Mounting Hardware
Mounting Hardware Included
Mounting Style
Surface Mount
Sound Style
Horn
Operating Temperature - Maximum
120 Degrees F
Operating Temperature - Minimum
32 Degrees F
Power Source
Wire
Volume Selection
Selectable Volume
Operating Voltage
12/24V
Power Source - TS Only
Wire
Power Source - old
Wire
Shell Material
Plastic

Description

Voltage 12/24V DC, Mounting Wall, Features Horn Rated at 88+ dBA at 16 V, Tamper-Resistant Construction, Temporal and Non-Temporal Tones, Standards CSFM Compliant 7135-1653:0503, CSFM Compliant 7135-1653:0504, FM 3057072, FM 3057383, UL Listed S4011, UL Listed S5512, ULC Listed, Color Red, Includes Mounting Plate, Horn
