Shop SYSTEM SENSOR

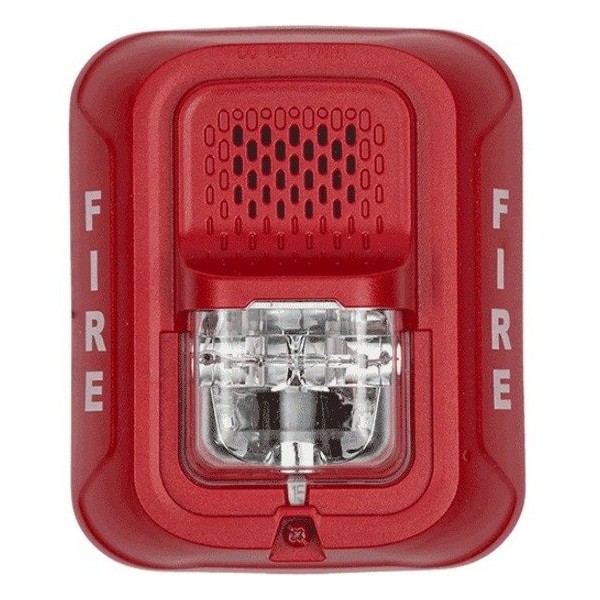

Horn Strobe, Marked Fire, Wall or Ceiling

  • Mfr # P4RL
  • Zoro # G6531782
product price:
$
116.99
/ea
Free Shipping & Returns

Key Features

Type
Marked Fire
Standards
UL 1638, UL 464
Mounting
Wall or Ceiling
Indoor/Outdoor
Indoor
Voltage
12/24V
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
P4RL
Zoro #
G6531782
UPC #
783863047442
Country of Origin
Mexico

Dimensions

Height
6 5/8 in
Length
6 5/8 in
Width
6 5/8 in
Overall Width
6 5/8 in
Depth
3 5/16 in
Overall Length
6 5/8 in
Overall Depth
3 5/16 in
Wire Rope Length
6 5/8 in

Details

Item
Horn Strobe
Type
Marked Fire
Standards
UL 1638, UL 464
Mounting
Wall or Ceiling
Indoor/Outdoor
Indoor
Voltage
12/24V
Enclosure Material
plastic
Enclosure Color
Red
Includes
Mounting Plate
Sensitivity (dB)
88 dB
Finish
Unfinished
Number Required
0
Ambient Temp. Limits (F)
32 Degrees to 120 Degrees F
Flash (Candela)
15/30/75/110/135/185 cd
Peak Output (dBA)
88 dBA
Humidity Range (% RH)
10 to 93% RH
Alarm Current
43 to 222mA DC, 60 to 257mA FWR
Features
Universal Mounting Plate with a Preliminary Snap-In Feature to Hold the Product in Place for the Screw Attachment, Intended to Notify Those that May Have a Hearing Impairment
Product Type
Horn and Strobe
Mount Type
Wall or Ceiling
For Location
Indoor
Operating Temperature - Maximum
120 Degrees F
Operating Temperature - Minimum
32 Degrees F
Power Source
Wire
Connection Type
Wire Leads
Light Intensity
15 cd, 30 cd, 75 cd, 95 cd, 115 cd, 150 cd, 185 cd
Legend
FIRE
Control Protocol
Direct Wire
Includes Mounting Hardware
Mounting Hardware Included
Sound Style
Horn
Housing Color
Red
Lens Color
Clear
Operating Voltage
12/24V
Power Source - TS Only
Wire
Power Source - old
Wire

Description

Horn Strobe, Marked Fire, Finish Unfinished, Wall or Ceiling Mounting, Alarm Current 43 to 222mA DC, 60 to 257mA FWR, Peak Output (dBA) 88, Flash (Candela) 15/30/75/110/135/185, Depth (In.) 3-5/16, Height (In.) 6-5/8, Length (In.) 6-5/8, Width (In.) 6-5/8, Ambient Temp. Limits (F) 32 to 120 Degrees , Humidity Range ( Percent RH) 10 to 93, Number Required 0, Voltage 12/24VDC, Standards NFPA, Includes Mounting Plate
