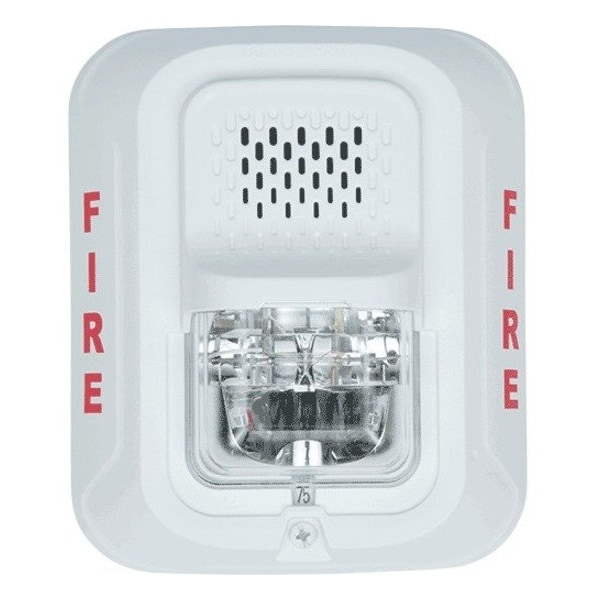

System Sensor Horn Strobe, Marked Fire, Wall or Ceiling P4WL - main

Horn Strobe, Marked Fire, Wall or Ceiling

  • Mfr # P4WL

  • Zoro # G6536140

product price: $104.99
/ea
Free Shipping & Returns

Key Features

Height
6 5/8 in
Width
6 5/8 in
Includes
Mounting Plate
Standards
UL 1638, UL 464
Alarm Current
43 to 222mA DC, 60 to 257mA FWR
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
P4WL
Zoro #
G6536140
UPC #
783863047459
Country of Origin
Mexico

Dimensions

Height
6 5/8 in
Width
6 5/8 in
Length
6 5/8 in
Overall Width
6 5/8 in
Depth
3 5/16 in
Overall Length
6 5/8 in
Overall Depth
3 5/16 in

Details

Item
Horn Strobe
Includes
Mounting Plate
Standards
UL 1638, UL 464
Alarm Current
43 to 222mA DC, 60 to 257mA FWR
Finish
Unfinished
Voltage
12/24V
Number Required
0
Peak Output (dBA)
88 dBA
Ambient Temp. Limits (F)
32 Degrees to 120 Degrees F
Type
Marked Fire
Flash (Candela)
15/30/75/110/135/185 cd
Humidity Range (% RH)
10 to 93% RH
Features
Universal Mounting Plate with a Preliminary Snap-In Feature to Hold the Product in Place for the Screw Attachment, Intended to Notify Those that May Have a Hearing Impairment
Product Type
Horn and Strobe
Mount Type
Wall or Ceiling
Legend
FIRE
Sound Style
Horn
Connection Type
Wire Leads
Power Source
Wire
Includes Mounting Hardware
Mounting Hardware Included
Control Protocol
Direct Wire
Operating Temperature - Minimum
32 Degrees F
For Location
Indoor
Operating Temperature - Maximum
120 Degrees F
Housing Color
White
Light Intensity
15 cd, 30 cd, 75 cd, 95 cd, 115 cd, 150 cd, 185 cd
Lens Color
Clear
Operating Voltage
12/24V
For Use With
System Sensor MDL3 Sync Module Compatible Devices : Legacy SpectrAlert SpectrAlert Advance

Description

Horn Strobe, Marked Fire, Finish Unfinished, Wall or Ceiling Mounting, Alarm Current 43 to 222mA DC, 60 to 257mA FWR, Peak Output (dBA) 88, Flash (Candela) 15/30/75/110/135/185, Depth (In.) 3-5/16, Height (In.) 6-5/8, Length (In.) 6-5/8, Width (In.) 6-5/8, Ambient Temp. Limits (F) 32 to 120 Degrees , Humidity Range ( Percent RH) 10 to 93, Number Required 0, Voltage 12/24VDC, Standards UL Listed, Includes Mounting Plate
