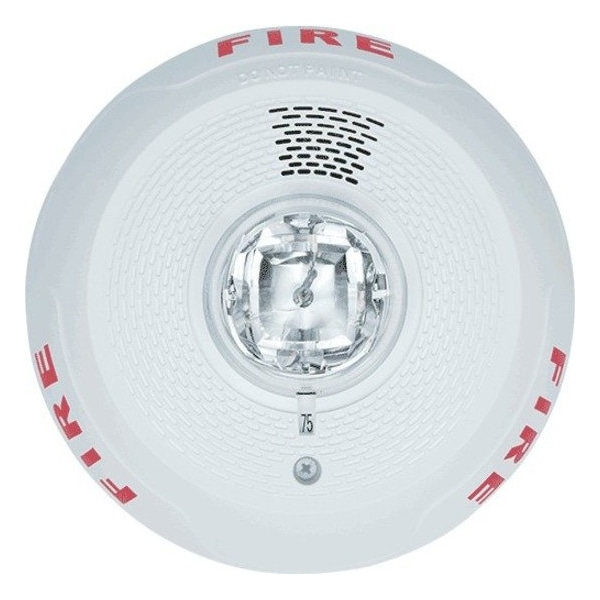

System Sensor Horn Strobe, Marked Fire, Wall or Ceiling PC4WL - main

Horn Strobe, Marked Fire, Wall or Ceiling

  • Mfr # PC4WL

  • Zoro # G6535431

product price: $108.99
/ea
Free Shipping & Returns

Key Features

Height
7 13/16 in
Width
7 13/16 in
Includes
Mounting Plate
Standards
UL 1638, UL 464
Alarm Current
43 to 222mA DC, 60 to 257mA FWR
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
PC4WL
Zoro #
G6535431
UPC #
783863047473
Country of Origin
Mexico

Dimensions

Height
7 13/16 in
Width
7 13/16 in
Length
7 13/16 in
Overall Width
7 13/16 in
Depth
3 13/16 in
Overall Length
7 13/16 in
Overall Depth
3 13/16 in

Details

Item
Horn Strobe
Includes
Mounting Plate
Standards
UL 1638, UL 464
Alarm Current
43 to 222mA DC, 60 to 257mA FWR
Type
Marked Fire
Ambient Temp. Limits (F)
32 Degrees to 120 Degrees F
Flash (Candela)
15/30/75/110/135/185 cd
Peak Output (dBA)
88 dBA
Finish
Unfinished
Voltage
12/24V
Number Required
0
Humidity Range (% RH)
10 to 93% RH
Features
Universal Mounting Plate with a Preliminary Snap-In Feature to Hold the Product in Place for the Screw Attachment, Intended to Notify Those that May Have a Hearing Impairment
Product Type
Chime and Strobe
Mount Type
Wall or Ceiling
For Location
Indoor
Housing Color
White
Operating Temperature - Maximum
120 Degrees F
Lens Color
Clear
Power Source
Wire
Includes Mounting Hardware
Mounting Hardware Included
Legend
FIRE
Sound Style
Horn
Connection Type
Wire Leads
Light Intensity
15 cd, 30 cd, 75 cd, 95 cd, 115 cd, 150 cd, 177 cd
Control Protocol
Direct Wire
Operating Temperature - Minimum
32 Degrees F
Operating Voltage
12/24V
For Use With
Legacy SpectrAlert SpectrAlert Advance System Sensor MDL3 Sync Module

Description

Horn Strobe, Marked Fire, Finish Unfinished, Wall or Ceiling Mounting, Alarm Current 43 to 222mA DC, 60 to 257mA FWR, Peak Output (dBA) 88, Flash (Candela) 15/30/75/110/135/185, Depth (In.) 3-13/16, Height (In.) 7-13/16, Length (In.) 7-13/16, Width (In.) 7-13/16, Ambient Temp. Limits (F) 32 to 120 Degrees , Humidity Range ( Percent RH) 10 to 93, Number Required 0, Voltage 12/24VDC, Standards FM, Includes Mounting Plate
