Shop SYSTEM SENSOR

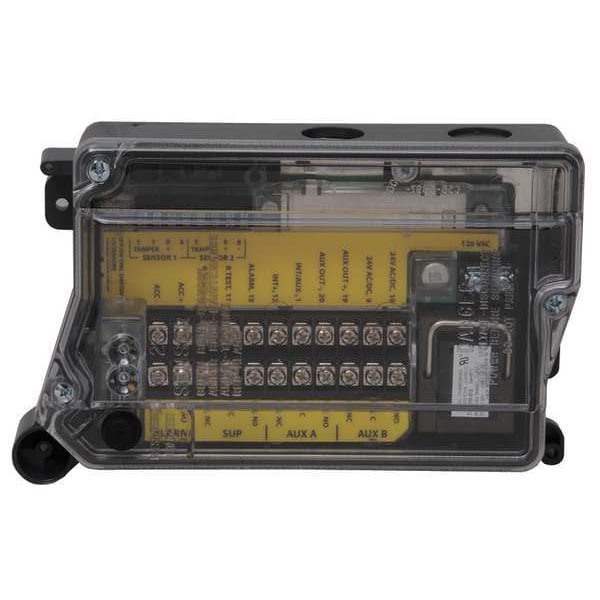

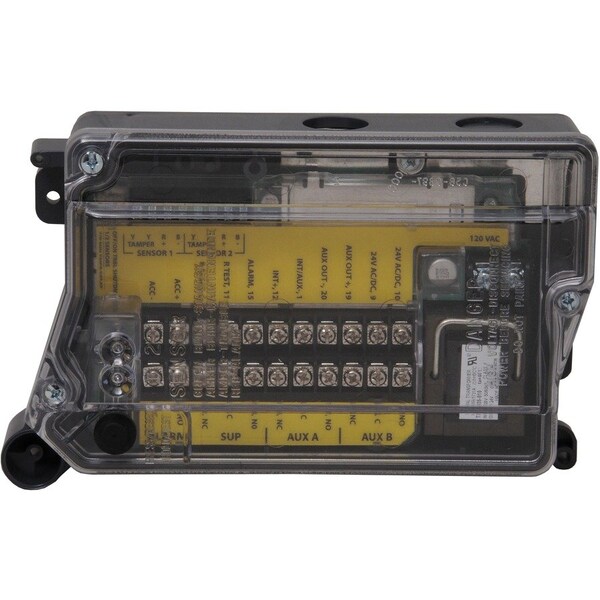

Photoelectric Power Board

  • Mfr # D4P120
  • Zoro # G4720861
product price:
$
189.99
/ea
Free Shipping & Returns

Key Features

For Use With
Mfr. No. D4P120, RTS2, DST Sampling Tubes
Height (In.)
5 in
Length (In.)
7 3/4 in
Includes
Power Board
Standards
UL S4048, ULC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
D4P120
Zoro #
G4720861
UPC #
783863034602
Country of Origin
Mexico

Dimensions

Height (In.)
5 in
Length (In.)
7 3/4 in
Depth (In.)
2 1/2 in
Overall Height
5 in
Overall Length
7 3/4 in
Wire Rope Length
7 3/4 in
Length
7 3/4 in

Details

Item
Photoelectric Power Board
For Use With
Mfr. No. D4P120, RTS2, DST Sampling Tubes
Includes
Power Board
Standards
UL S4048, ULC
Alarm Current
135mA RMS @ 24V AC, 35mA RMS @ 120V AC, 65mA @ 24V DC
Type
Smoke Detector
Standby State (mA)
Max 21mA @24V DC/ Max 65mA RMS @24V AC/ Max 20mA RMS @120V AC
Voltage
24V, 120V
Number Required
1
Humidity Range (% RH)
0 to 95% RH
Alarm Aux. Contact @ 250V
10 A
Alarm Aux. Contact @ 30VDC
10 A
Air Velocity (FPM)
100 to 4000 fpm
Ambient Temp. Limits (F)
-4 Degrees to 158 Degrees F
Product Type
Power Board Component
Compatible Brand
System Sensor
Current Rating
135 mA @ 24V AC, 35 mA @ 120V AC, 65 mA @ 24V DC
Operating Temperature - Minimum
-40 Degrees F
Compatible Manufacturer Part Number
D4P120
Operating Temperature - Maximum
158 Degrees F
Voltage Rating
120V AC, 24V AC/DC
Operating Humidity - Maximum
95 %
Compatible Product Type
Mfr. No. D4P120, RTS2, DST Sampling Tubes

Description

Photoelectric Power Board, Smoke Detector, Alarm Current 135mA RMS @ 24V AC, 35mA RMS @ 120V AC, 65mA @ 24V DC, Depth (In.) 2 1/2 in, Height (In.) 5 in, Length (In.) 7 3/4 in, Ambient Temp. Limits (F) -4 Degrees to 158 Degrees F, Air Velocity (FPM) 100 to 4000 fpm, Alarm Aux. Contact @ 250V 10 A, Alarm Aux. Contact @ 30VDC 10 A, Humidity Range ( Percent RH) 0 to 95 Percent RH, Number Required 1, Standby State (mA) Max 21mA @24V DC/ Max 65mA RMS @24V AC/ Max 20mA RMS @120V AC, Voltage 24/120
