This item is Discontinued.

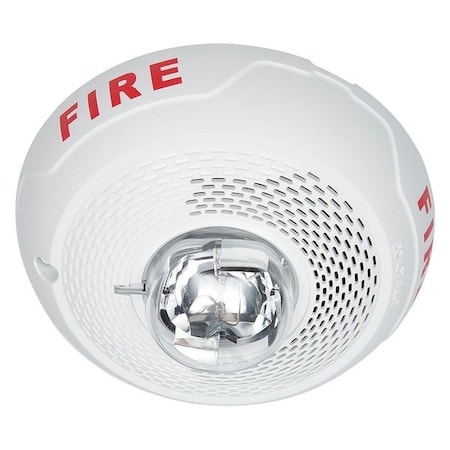

System Sensor Speaker Strobe, Speaker Strobe, White SPSCWL

Speaker Strobe, Speaker Strobe, White (Discontinued)

  • Mfr # SPSCWL
  • Zoro # G9913158
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SPSCWL
Zoro #
G9913158
UPC #
783863048357
Country of Origin
Mexico

Dimensions

Tube Length (Ft.)
1 ft
Depth
4.5"
Overall Width
5 in
Overall Height
6.5 in
Overall Depth
2.3 in

Details

Item
Speaker Strobe
Type
Speaker Strobe
Standards
CSFM 7320-1653:0505, FM, UL S4048, ULC S4048
Mounting
Ceiling
Voltage
12/24 V
Includes
Mounting Plate
Alarm State (mA)
41 to 264 mA
Flash (Candela)
15/177 cd
Standby State (mA)
0 mA
Humidity Range (% RH)
10 to 93% RH
Finish
White
Ambient Temp. Limits (F)
32 Degrees to 120 Degrees F
For Use With
Fire Alarm Panel
Peak Output (dBA)
86 dBA
Standby Current (uA)
0 uA
Product Type
Speaker Strobe
Application
Fire, Indoor, Alarm, Evacuation
Features
No Extension Ring Required, Plug-In Design and Protective Cover Reduce Ground Faults, Tamper-Resistant Construction, Updated Modern Aesthetics
Transformer Taps @ 25V
0.25 W, 0.5 W, 1 W, 2 W
Visual Indicator Type
Strobe
Power Source
Wire
Light Operating Mode
Strobe
Housing Material
Plastic
Connection Type
Wire Leads
Wattage
2 W
Transformer Taps @ 70V
0.25 W, 0.5 W, 1 W, 2 W
Housing Color
White
Operating Temperature - Minimum
32 Degrees F
Frequency Response - Minimum
400 Hz
Environment
Indoor
Current
264 mA
Light Output
15 cd, 30 cd, 75 cd, 95 cd, 115 cd, 150 cd, 177 cd
Lamp Type
Xenon
Audible Alarm Type
Fire Alarm
Frequency Response - Maximum
4,000 Hz
Operating Temperature - Maximum
120 Degrees F
Sound Level
86 dBA
Legend
FIRE
Lens Color
Clear

Description

Speaker Strobe, Speaker Strobe, Finish White, Ceiling Mounting, Alarm Current -, Peak Output (dBA) 86, Flash (Candela) 15/177, Standby Current (uA) 0, Depth (In.) 2-1/2, Height (In.) 6-13/16, Length (In.) 6-13/16, Tube Length (Ft.) 1, Width (In.) 6-27/32, Ambient Temp. Limits (F) 32 to 120 Degrees , Alarm State (mA) 41 to 264, Humidity Range ( Percent RH) 10 to 93, Standby State (mA) 0, Voltage 12 or 24 VDC, Standards UL Listed, CSFM, FM, Includes Mounting Plate, For Use With Fire Alarm Panel
