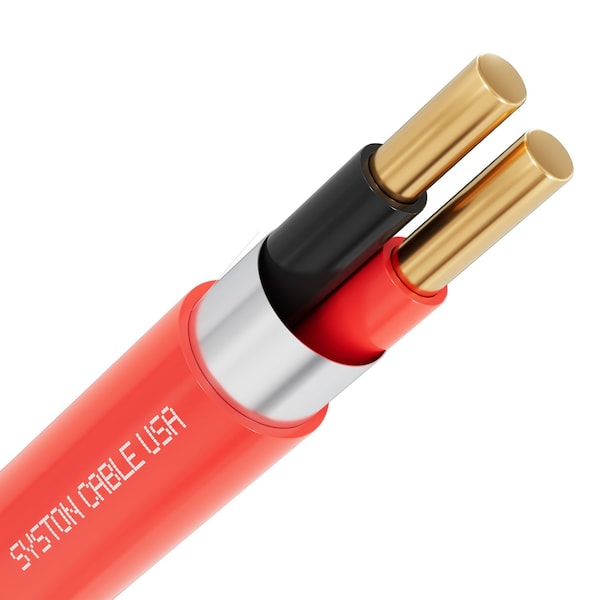

14/2 Fire Alarm Burglar Station Wire Cable, 100% Solid Copper, FPLP Shielded, UL/ETL Listed, 1000ft
Mfr # 6018-1000RD
Zoro # G922806145
product price:Â
$
897.99
/ea
Free Shipping & Returns
Key Features
Cable Length
1000 ft
Solid/Stranded
Solid
Shielding Material
Foil
Maximum Voltage Rating
300 V
Standards
NEC:725 & 760, UL Standard: UL 13 & UL 1424, Flame Rating: NFPA 262 (Plenum), CSA-C22.2 No. 2556 (FT6), California State Fire Marshall, ASTM B-3 and B-8, RoHS 3 (EU 2015/863)
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 6018-1000RD
- Zoro #
- G922806145
- UPC #
- -
- Country of Origin
- China
Dimensions
- Cable Length
- 1000 ft
- Outside Diameter
- 0.24 in
Details
- Item
- Fire Alarm Cable
- Solid/Stranded
- Solid
- Shielding Material
- Foil
- Maximum Voltage Rating
- 300 V
- Standards
- NEC:725 & 760, UL Standard: UL 13 & UL 1424, Flame Rating: NFPA 262 (Plenum), CSA-C22.2 No. 2556 (FT6), California State Fire Marshall, ASTM B-3 and B-8, RoHS 3 (EU 2015/863)
- Jacket Material
- PVC
- Jacket Color
- Red
- Shielded / Unshielded
- Shielded
- Application
- Fire Protective Signaling Circuits, Smoke Detectors, Strobes/Sirens, Pull Stations, Voice Communications, Burglar Alarms, Audio, Control, Initiating & Notification Circuits, Microprocessor/Addressable Controlled Systems
- Temp. Range
- -4 Degrees to 167 Degrees F
- Package Type
- Spool
- Number of Conductors
- 2
- Conductor Gauge
- 14 AWG
- Fire Rating
- Plenum / FPLP
- Conductor Material
- Copper
- Series
- 6018
Description
SYSTON CABLE TECHNOLOGY Power Limited Fire Alarm Cable 14 AWG 2 Solid Conductors Shielded Plenum Rated - FPLP, CL3P, FT6 Applications: Fire Protective Signaling Circuits, Smoke Detectors, Strobes/Sirens, Pull Stations, Voice Communications, Burglar Alarms, Audio, Control, Initiating & Notification Circuits, Microprocessor/Addressable Controlled Systems
