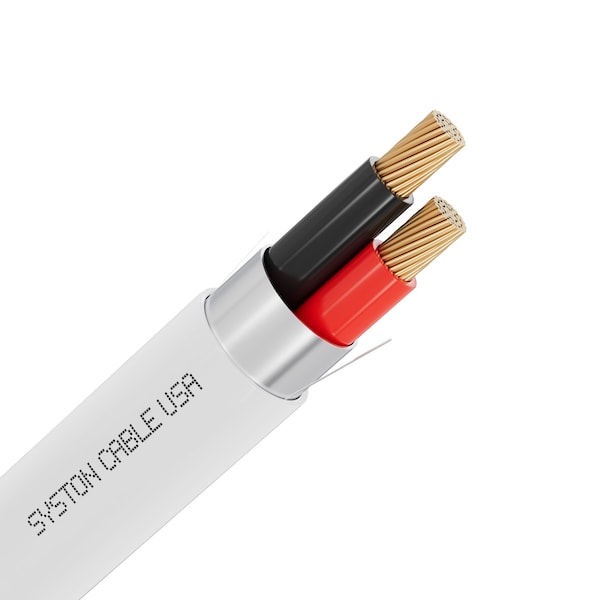

14/2 Fire Alarm Security Cable Wire, 100% Stranded Copper, Plenum CMP Shielded, Low Voltage, 20 ft
Mfr # 5823-20WH
Zoro # G222806128
product price:Â $21.99
/eaKey Features
Conductor Material
Copper
Length
20 ft
Wire Size
14 AWG
Conductor Design
Stranded
Nominal Outside Dia.
0.248 in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
5823-20WH
Zoro #
G222806128
UPC #
-
Country of Origin
China
Dimensions
Length
20 ft
Wire Size
14 AWG
Nominal Outside Dia.
0.248 in
Details
Item
Control Cable
Conductor Material
Copper
Conductor Design
Stranded
Standards
NFPA 262 and CSA FT6, RoHS Compliant, UL ETL Listed
Jacket Material
PVC
Number of Conductors
2
Jacket Color
White
Voltage
300 V
Application
Wiring Fire Alarm, Security Burglar Alarm, Public Address Systems, Intercoms, Telephone Stations, Communications, Instrumentation, Access Control, Nurse Call, Security and Other Low Voltage Circuits that are Power-Limited Applications.
Temp. Rating
-4 Degrees to 167 Degrees F
Description
SYSTON CABLE TECHNOLOGY Premium Security, Control, Sound & Alarm Cable 14 AWG 2 Stranded Conductors Shielded Plenum Rated - CMP, CL3P, FPLP, FT6 Conductor: Stranded Bare Copper Number of Conductors: 2 (Twisted) Size: 14 AWG Insulation: Plenum PVC (Low Smoke, Flame Retardant & RoHS Compliant) Shielding: Aluminum Foil/Mylar (Aluminum Side Contact Drain Wire) Drain Wire: Tinned Copper Rip Cord: Applied Longitudinally Under Jacket Jacket: Plenum PVC (Low Smoke, Flame-Retardant & RoHS Compliant) Nominal Cable Diameter (in): 0.248 Temperature Rating (oF): Installation: +32 to +140 Storage & Operation: -4 to +167
