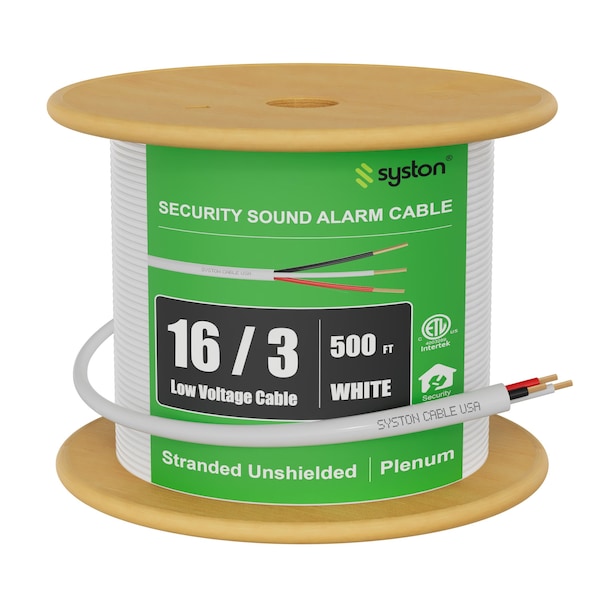

16/3 Fire Alarm Security Cable, 100% Stranded Copper, Plenum CMP Unshielded, Low Voltage Use, 500 ft
Mfr # 5778-500WH
Zoro # G922806107
product price:Â $333.99
/ea
Free Shipping & Returns
Key Features
Wire Size
16 AWG
Conductor Material
Copper
Number of Conductors
3
Jacket Color
White
Jacket Material
PVC
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 5778-500WH
- Zoro #
- G922806107
- UPC #
- -
- Country of Origin
- China
Dimensions
- Wire Size
- 16 AWG
- Length
- 500 ft
- Nominal Outside Dia.
- 0.208 in
Details
- Item
- Control Cable
- Conductor Material
- Copper
- Number of Conductors
- 3
- Jacket Color
- White
- Jacket Material
- PVC
- Conductor Design
- Stranded
- Voltage
- 300 V
- Temp. Rating
- -4 Degrees to 167 Degrees F
- Standards
- NFPA 262 and CSA FT6, RoHS Compliant, UL ETL Listed
- Application
- Wiring Fire Alarm, Security Burglar Alarm, Public Address Systems, Intercoms, Telephone Stations, Communications, Instrumentation, Access Control, Nurse Call, Security and Other Low Voltage Circuits that are Power-Limited Applications.
Description
SYSTON CABLE TECHNOLOGY Premium Security, Control, Sound & Alarm Cable 16 AWG 3 Stranded Conductors Unshielded Plenum Rated - CMP, CL3P, FPLP, FT6 Conductor: Stranded Bare Copper Number of Conductors: 3 (Twisted) Size: 16 AWG Insulation: Plenum PVC (Low Smoke, Flame Retardant & RoHS Compliant) Rip Cord: Applied Longitudinally Under Jacket Jacket: Plenum PVC (Low Smoke, Flame-Retardant & RoHS Compliant) Nominal Cable Diameter (in): 0.208 Temperature Rating (oF): Installation: +32 to +140 Storage & Operation: -4 to +167
