  6. 16/3 Fire Alarm Security Cable Wire, 100% Stranded Copper, Plenum CMP Shielded, Low Voltage, 500 ft

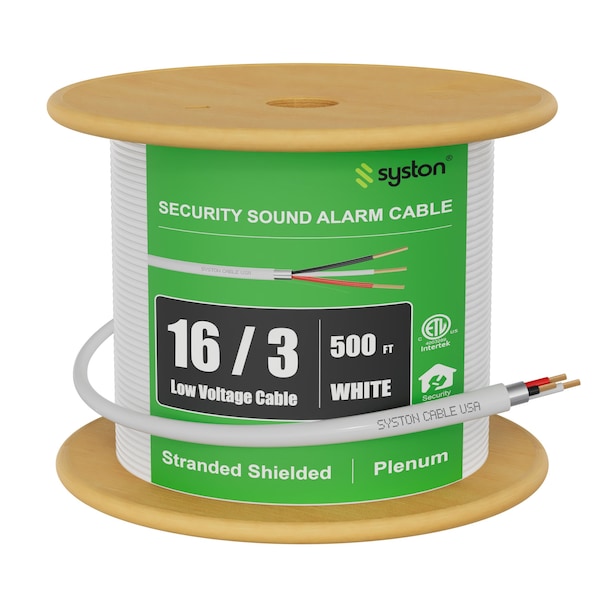

Syston Cable Technology 16/3 Fire Alarm Security Cable Wire, 100% Stranded Copper, Plenum CMP Shielded, Low Voltage, 500 ft 5788-500WH - main

16/3 Fire Alarm Security Cable Wire, 100% Stranded Copper, Plenum CMP Shielded, Low Voltage, 500 ft

  • Mfr # 5788-500WH

  • Zoro # G422806195

product price:  $363.99
/ea
Free Shipping & Returns

Key Features

Temp. Rating
-4 Degrees to 167 Degrees F
Nominal Outside Dia.
0.217 in
Wire Size
16 AWG
Standards
NFPA 262 and CSA FT6, RoHS Compliant, UL ETL Listed
Jacket Color
White
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
5788-500WH
Zoro #
G422806195
UPC #
-
Country of Origin
China

Dimensions

Nominal Outside Dia.
0.217 in
Wire Size
16 AWG
Length
500 ft

Details

Temp. Rating
-4 Degrees to 167 Degrees F
Standards
NFPA 262 and CSA FT6, RoHS Compliant, UL ETL Listed
Jacket Color
White
Item
Control Cable
Conductor Material
Copper
Conductor Design
Stranded
Number of Conductors
3
Voltage
300 V
Jacket Material
PVC
Application
Wiring Fire Alarm, Security Burglar Alarm, Public Address Systems, Intercoms, Telephone Stations, Communications, Instrumentation, Access Control, Nurse Call, Security and Other Low Voltage Circuits that are Power-Limited Applications.

Description

SYSTON CABLE TECHNOLOGY Premium Security, Control, Sound & Alarm Cable 16 AWG 3 Stranded Conductors Shielded Plenum Rated - CMP, CL3P, FPLP, FT6 Conductor: Stranded Bare Copper Number of Conductors: 3 (Twisted) Size: 16 AWG Insulation: Plenum PVC (Low Smoke, Flame Retardant & RoHS Compliant) Shielding: Aluminum Foil/Mylar (Aluminum Side Contact Drain Wire) Drain Wire: Tinned Copper Rip Cord: Applied Longitudinally Under Jacket Jacket: Plenum PVC (Low Smoke, Flame-Retardant & RoHS Compliant) Nominal Cable Diameter (in): 0.217 Temperature Rating (oF): Installation: +32 to +140 Storage & Operation: -4 to +167
