  6. 16/4 Fire Alarm Security Cable, 100% Stranded Copper, Riser CMR Shielded, Low Voltage Use, 500 ft

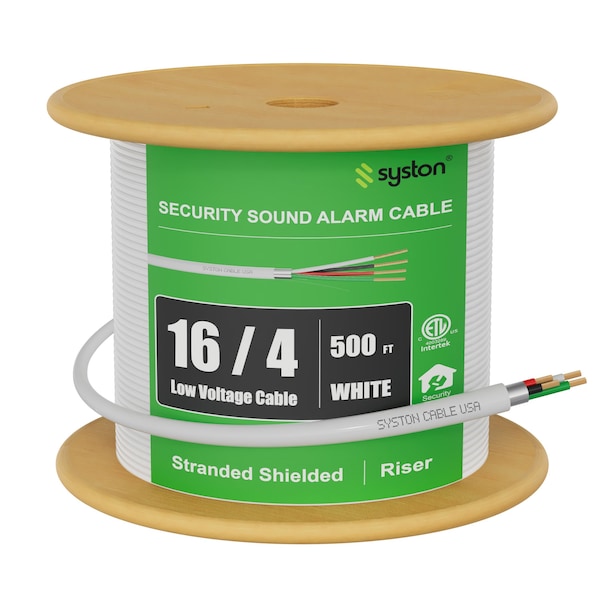

Syston Cable Technology 16/4 Fire Alarm Security Cable, 100% Stranded Copper, Riser CMR Shielded, Low Voltage Use, 500 ft 5917-500WH - main

16/4 Fire Alarm Security Cable, 100% Stranded Copper, Riser CMR Shielded, Low Voltage Use, 500 ft

  • Mfr # 5917-500WH

  • Zoro # G322806103

product price:  $471.99
/ea
Free Shipping & Returns

Key Features

Jacket Material
PVC
Number of Conductors
4
Temp. Rating
-4 Degrees to 167 Degrees F
Standards
UL 1666 and CSA FT4, RoHS Compliant, ETL Listed
Nominal Outside Dia.
0.256 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
5917-500WH
Zoro #
G322806103
UPC #
-
Country of Origin
China

Dimensions

Nominal Outside Dia.
0.256 in
Length
500 ft
Wire Size
16 AWG

Details

Jacket Material
PVC
Number of Conductors
4
Temp. Rating
-4 Degrees to 167 Degrees F
Standards
UL 1666 and CSA FT4, RoHS Compliant, ETL Listed
Conductor Material
Copper
Application
Wiring Fire Alarm, Security Burglar Alarm, Public Address Systems, Intercoms, Telephone Stations, Communications, Instrumentation, Access Control, Nurse Call, Security and Other Low Voltage Circuits that are Power-Limited Applications.
Voltage
300 V
Jacket Color
White
Item
Control Cable
Conductor Design
Stranded

Description

SYSTON CABLE TECHNOLOGY Premium Security, Control, Sound & Alarm Cable 16 AWG 4 Stranded Conductors Shielded Riser Rated - CMR, CL3R, FPLR, FT4, Sun Res Conductor: Stranded Bare Copper Number of Conductors: 4 (Twisted) Size: 16 AWG Insulation: Premium Polyolefin (Flame Retardant & RoHS Compliant) Shielding: Aluminum Foil/Mylar (Aluminum Side Contact Drain Wire) Drain Wire: Tinned Copper Rip Cord: Applied Longitudinally Under Jacket Jacket: Premium PVC (Flame-Retardant, Sunlight Resistant& RoHS Compliant) Nominal Cable Diameter (in): 0.256 Temperature Rating (oF): Installation: +32 to +140 Storage & Operation: -4 to +16
