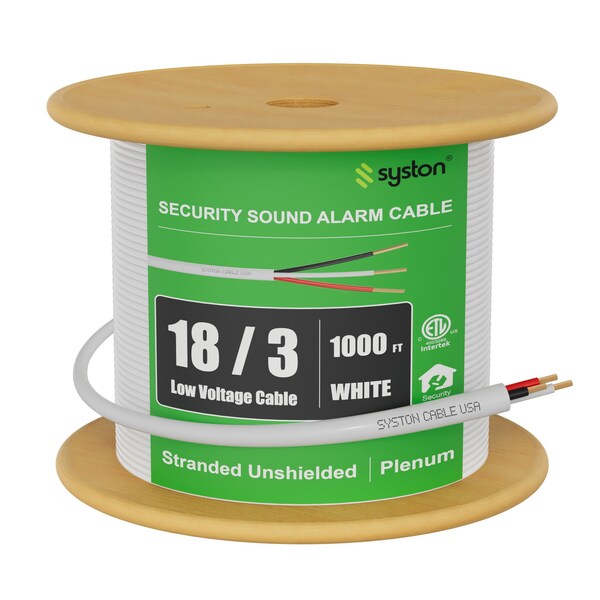

18/3 Fire Alarm Security Cable, 100% Stranded Copper, Plenum CMP Unshielded, Low Voltage, 1000 ft
Mfr # 5613-1000WH
Zoro # G721722936
product price:Â
$
373.99
/ea
Free Shipping & Returns
Key Features
Cable Length
1,000 ft
Conductor Gauge
18 AWG
Fire Rating
Plenum
Jacket Color
White
Jacket Material
PVC
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 5613-1000WH
- Zoro #
- G721722936
- UPC #
- -
- Country of Origin
- China
Dimensions
- Cable Length
- 1,000 ft
- Outside Diameter
- 0.165 in
- Conductor Size
- 18 AWG
Details
- Item
- Control Cable
- Conductor Gauge
- 18 AWG
- Fire Rating
- Plenum
- Jacket Color
- White
- Jacket Material
- PVC
- Number of Conductors
- 3
- Maximum Voltage Rating
- 300 V
- NEC Article and Type
- 800 CMP, 725 CL3P
- Standards
- NFPA 262 and CSA FT6, RoHS Compliant, UL Listed
- Fire Resistance Rating
- Plenum / CL3P / CMP / FT6
- Style
- 18/3 CMP Unshielded
- Conductor Design
- Stranded
- Conductor Material
- Copper
- Shielded / Unshielded
- Unshielded
- Application
- Wiring for fire alarms, security systems, communications, access control, nurse call, and other low-voltage power-limited circuits
- Temp. Range
- -4 Degrees to 167 Degrees F
- Package Type
- Spool
Description
SYSTON CABLE TECHNOLOGY Security, Control, Sound & Alarm Cable 18 AWG 3 Stranded Conductors Unshielded Plenum Rated - CMP, CL3P, FPLP, FT6 Conductor: Stranded Bare Copper Number of Conductors: 3 (Twisted) Size: 18 AWG Insulation: Plenum PVC (Low Smoke, Flame Retardant & RoHS Compliant) Rip Cord: Applied Longitudinally Under Jacket Jacket: Plenum PVC (Low Smoke, Flame-Retardant & RoHS Compliant) Nominal Cable Diameter (in): 0.165 Temperature Rating (oF): Installation: +32 to +140 Storage & Operation: -4 to +167
