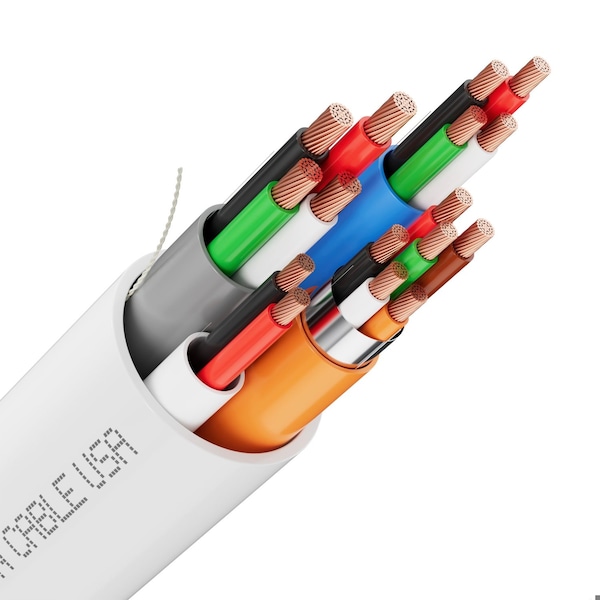

Access Control Cable White 250 FT - 18/4c+22/3pr OAS+22/2c+22/4c, CL3P, OSDP & Wiegand Compatible
Mfr # 9888-250WH
Zoro # G922806169
product price: $448.99
/ea
Free Shipping & Returns
Key Features
Cable Length
250 ft
Jacket Material
PVC
Features
Orange: Lock Power, White: Card Reader, Blue: Door Contact, Green: Request to Exit
Outside Diameter
0.39 in
Conductor Material
Copper
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
9888-250WH
Zoro #
G922806169
UPC #
-
Country of Origin
China
Dimensions
Cable Length
250 ft
Outside Diameter
0.39 in
Details
Item
Access Control Cable
Jacket Material
PVC
Features
Orange: Lock Power, White: Card Reader, Blue: Door Contact, Green: Request to Exit
Conductor Material
Copper
Maximum Voltage Rating
300 V
Application
Access Control, Electronic Circuits, Control Systems, Communications, Alarm Systems
Standards
NEC: 725 & 800, CSA C22.2 No.214, UL Standard: UL 13 & UL 444, Flame Rating: NFPA 262 (Plenum), (UL) FT6, ASTM B-3 & B-8, RoHS 3 (EU 2015/863)
NEC Article and Type
800 CMP, 725 CL3P
Number of Conductors
4
Shielded / Unshielded
Shielded
Shielding Material
Foil
Operating Temp. Range
-4 to 167°F
Fire Rating
Plenum
Number of Strands
7, 19
Jacket Color
White
Conductor Gauge
18 AWG, 22 AWG
Conductor Design
Stranded
Package Type
Spool
Description
SYSTON CABLE TECHNOLOGY Premium Access Control Composite Cable 18/4C STR+22/3PR STR OAS+22/2C STR+22/4C STR Plenum Rated - CMP, CL3P, FT6 Sub-application: Lock Power Component Jacket Color: Orange Description: 18/4C STR Sub-application: Card Reader Component Jacket Color: White Description: 22/3PR STR OAS Sub-application: Door Contact Component Jacket Color: Blue Description: 22/2C STR Sub-application: Request to Exit Component Jacket Color: Green Description: 22/4C STR
