Access Control Cable White 500 FT - 18/4c+22/3pr OAS+22/2c+22/4c, CL3P, OSDP & Wiegand Compatible
Mfr # 9888-500WH
Zoro # G322806141
product price: $806.99
/ea
Free Shipping & Returns
Key Features
Conductor Gauge
18 AWG, 22 AWG
Number of Strands
7, 19
Conductor Material
Copper
Operating Temp. Range
-4 to 167°F
Shielding Material
Foil
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
9888-500WH
Zoro #
G322806141
UPC #
-
Country of Origin
China
Dimensions
Outside Diameter
0.39 in
Cable Length
500 ft
Details
Conductor Gauge
18 AWG, 22 AWG
Number of Strands
7, 19
Conductor Material
Copper
Operating Temp. Range
-4 to 167°F
Shielding Material
Foil
NEC Article and Type
800 CMP, 725 CL3P
Features
Orange: Lock Power, White: Card Reader, Blue: Door Contact, Green: Request to Exit
Item
Access Control Cable
Conductor Design
Stranded
Application
Access Control, Electronic Circuits, Control Systems, Communications, Alarm Systems
Jacket Color
White
Number of Conductors
4
Jacket Material
PVC
Fire Rating
Plenum
Shielded / Unshielded
Shielded
Maximum Voltage Rating
300 V
Package Type
Spool
Standards
NEC: 725 & 800, CSA C22.2 No.214, UL Standard: UL 13 & UL 444, Flame Rating: NFPA 262 (Plenum), (UL) FT6, ASTM B-3 & B-8, RoHS 3 (EU 2015/863)
Description

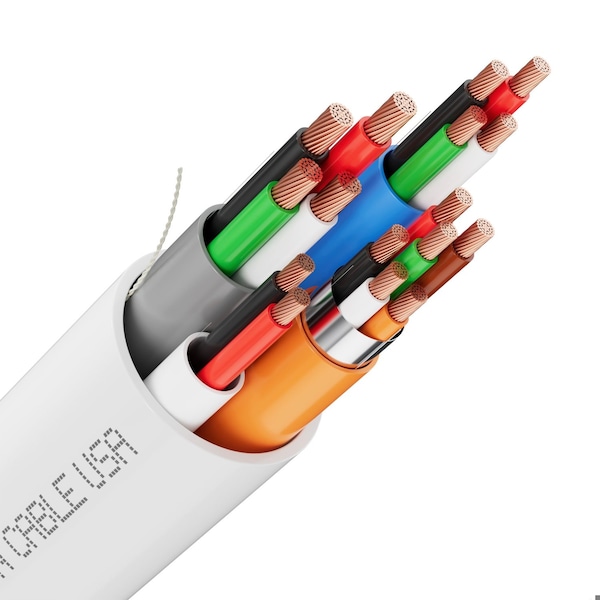

SYSTON CABLE TECHNOLOGY Premium Access Control Composite Cable 18/4C STR+22/3PR STR OAS+22/2C STR+22/4C STR Plenum Rated - CMP, CL3P, FT6 Sub-application: Lock Power Component Jacket Color: Orange Description: 18/4C STR Sub-application: Card Reader Component Jacket Color: White Description: 22/3PR STR OAS Sub-application: Door Contact Component Jacket Color: Blue Description: 22/2C STR Sub-application: Request to Exit Component Jacket Color: Green Description: 22/4C STR
