  9. 1" SPDT Flow Switch 24/125/250VAC 1500 gpm
Shop All Level Switches
Taco

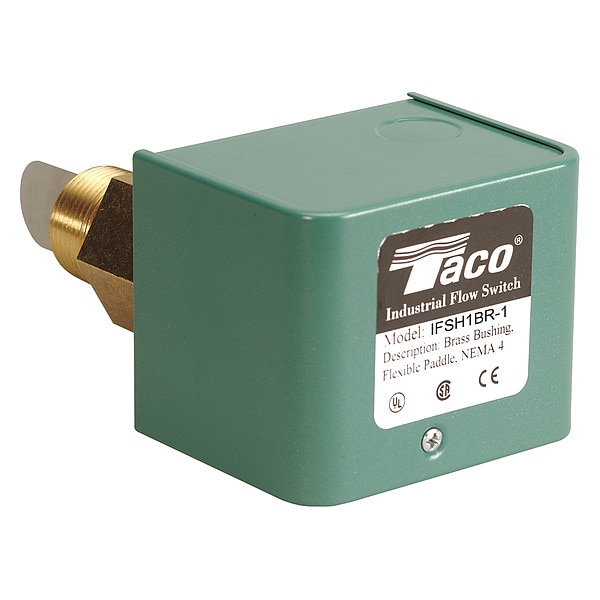

1" SPDT Flow Switch 24/125/250VAC 1500 gpm

product price: $213.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Connection Size (In.) 1
  • Switch Type SPDT
  • Voltage 24/125/250VAC
  • Max. Pressure 250 psi
  • Max. Flow GPM 1,500 gpm
See all product information

Product Information

  • Brand Taco
  • MFR # IFSH1BR-1
  • Zoro # G6144984
  • UPC #
    687752299359
  • Country of Origin United States
  • Category Level Switches

Dimensions

Connection Size (In.) 1
Overall Length 3.5 in
For Pipe Size 1 in
Overall Height 4.7 in
Overall Width 3.7 in
Connection Size 1 in

Details

Switch Type SPDT
Voltage 24/125/250VAC
Max. Pressure 250 psi
Max. Flow GPM 1,500 gpm
Switch Enclosure NEMA 1
Body Material Brass
Application This Switch Can Serve As A Way to Start and Stop Electrically Operated Equipment When a Flow or No-Flow Condition Occurs in A Variety of Applications
Item Flow Switch
Operating Velocity Range (FPM) 3.5 to 600
Phase Single
Contact Rating 22A at 125/250V AC
Flow Rate Flow Decrease 3.5 to 7 gpm, Flow Increase 4.5 to 9.5 gpm
Min. Flow Rate (GPM) 4.5 gpm
Max. Pressure (PSI) 250 psi
Max. Operating Velocity (FPM) 600 fpm
Float Switch Contact Form SPDT
Material of Construction Brass, EPDM, Fluorosilicone, Stainless Steel
Wetted Materials Brass, EPDM, Fluorosilicone, Stainless Steel
Min. Ambient Temp. (F) 32 Degrees
Hz 60
Max. Ambient Temp. (F) 176 Degrees F
Max. Fluid Temp. (F) 250 Degrees F
Type Industrial
Max. HP 1/2 to 1
Compliance CE, CSA, UL
Min. Fluid Temp. (F) 32 Degrees F
Standards CE Certified, CSA Certified, UL Listed
Connection Type NPT
Set Point Configuration Adjustable
Contact Rating (DC) 15A @125/250VAC
Frequency 60 Hz
Housing Material Brass
Flow Rate - Minimum 4.5 gpm
Ambient Temperature - Maximum 176 Degrees F
Media Temperature - Minimum 32 Degrees F
Flow Switch Type Paddle
Nameplate Voltage 125V
Media Temperature - Maximum 250 Degrees F
Switch Position Normally Open
Flow Rate - Maximum 1,500 gpm
Contact Rating (AC) 22 A @ 125/250V
Wetted Material Brass, EPDM, Fluorosilicone, Stainless Steel

Description

Flow Switch, Ambient Temperature - Maximum 176 Degrees F, Connection Size 1 in, Connection Type NPT, Contact Rating (AC) 22 A @ 125/250V, Contact Rating (DC) 15A @125/250VAC, Filter Rating - Maximum Not Applicable, Flow Rate - Maximum 1,500 gpm, Flow Rate - Minimum 4.5 gpm, Flow Switch Type Paddle, For Pipe Size 1 in, Frequency 60 Hz, Hazardous Location Specification Not Applicable, Housing Material Brass, Media Temperature - Maximum 250 Degrees F, Media Temperature - Minimum 32 Degrees F
