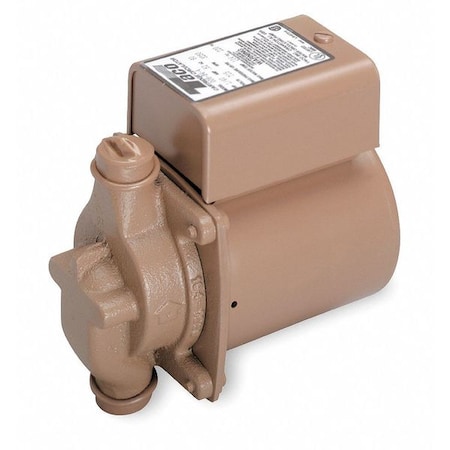

HVAC Circulating Pump, 1/40 hp, 115V, 1 Phase, Sweat Connection

Taco HVAC Circulating Pump,  1/40 hp,  115V,  1 Phase,  Sweat Connection 006-B4-15
Tap to zoom
Hover or click to zoom
$296.53
  • Voltage: 115V
  • Item: Potable Water Circulating Pump
  • HP: 1/40 hp
See full product details
This item ships free.

Total: $296.53

Taco #006-B4-15 Specifications

  • Voltage: 115V
  • Item: Potable Water Circulating Pump
  • HP: 1/40 hp
  • Housing Material: Low Lead Bronze
  • Phase: 1
  • Phase - Pumps: 1
  • Inlet/Outlet Size: 3/4 in
  • Pump Type: Self Lubricating
  • Connection Style: Sweat
  • Max. GPM @ Head: 10.5 gpm @ 1 ft
  • Min. GPM @ Head: 2 gpm @ 9 ft
  • Series: 006-b4-15
  • Flange/Union Included: No
  • Voltage - Pumps: 115V AC
  • Max. Temp.: 220 Degrees F
  • Thermal Protection: Impedance
  • Face to Face Dimension: 4 3/8 in
  • Drive Type: Direct
  • RPM: 3,250 RPM
  • Pump Mount: In Line
  • HVAC Circulating Pump Type: Potable Water Circulating Pump
  • Impeller Material: Noryl(R)
  • Loop Configuration: Open
  • Housing Material - Pumps: Low Lead Bronze
  • Best Efficiency GPM @ Head: 6 gpm @ 6.5 ft
  • Max. Operating Pressure: 125 psi
  • Number of Speeds: 1
  • Manufacturers Warranty Length: 3 yr
  • Shaft Material: Ceramic
  • Width: 3 5/16 in
  • Amps: 0.52
  • Features: Maintenance Free, Wet Rotor
  • Length: 5 1/8 in
  • Mechanical Seal: No
  • Shut-Off: 9 1/2 ft
  • Standards: UL-CUS
  • Compliance: Low Lead,NSF-372
  • Length (Straight Wireway): 5 1/8 in
  • Overall Length: 5.13 in
  • Maximum Flow Rate @ 15 Feet of Head: 0 gpm
  • Maximum RPM: 3,250 RPM
  • Brand and Connection Combo Broad: Taco, Sweat
  • Body Gasket Material: EPDM
  • Overall Width: 3.09 in
  • Nameplate Voltage: 115V AC
  • Compatible Discharge Pipe Size: 3/4 in
  • Pump Housing Material: Bronze
  • Maximum Operating Pressure: 125 psi
  • Rotor Type: Wet
  • Maximum Media Temperature: 220 Degrees F
  • Maximum Flow Rate @ 50 Feet of Head: [DELETE]
  • Horsepower: 1/40
  • For Use With: Potable Systems
  • Compatible Media Type: Water
  • Manufacturer Warranty Length: 3 yr
  • Minimum Media Temperature: 40 Degrees F
  • Frequency: 60 Hz
  • Series Family: 00
  • For Use With Potable Systems: Yes
  • Maximum Flow Rate @ 5 Feet of Head: 7 gpm
  • Connection Type: Sweat
  • Compatible Intake Pipe Size: 3/4 in
  • Brand and Connection Combo: TACO , Sweat
  • Phase and Brand: TACO Single Phase
  • Maximum Feet of Head: 10 ft
  • Maximum Flow Rate @ 10 Feet of Head: 0 gpm
  • Maximum Flow Rate @ 1 Feet of Head: 12 gpm
  • Country of Origin (subject to change): United States

Description

Potable Water Circulating Pump, Compatible Intake Pipe Size 3/4 in, Connection Type Sweat, Face to Face Dimension 4 3/8 in, For Use With Potable Systems Yes, Horsepower 1/40, Maximum Feet of Head 10 ft, Maximum Flow Rate @ 10 Feet of Head 0 gpm, Maximum Flow Rate @ 1 Foot of Head 12 gpm, Nameplate Voltage 115V AC, Number of Speeds 1, Phase Single, Pump Type Standard, Series Family 00, Maximum Flow Rate @ 5 Feet of Head 7 gpm, Series 006, Amps 0.52 A, Body Gasket Material EPDM

Restrictions and Compliance

  • This product has been certified by a third party to be compliant with the “Safe Drinking Water Act” requirements for low lead in potable (human consumption - drinking and cooking) and non-potable water applications (non-human consumption).
  • *** This is a restricted item in CA, LA, MD, VT. It cannot be used for potable water applications.
