Shop TACO

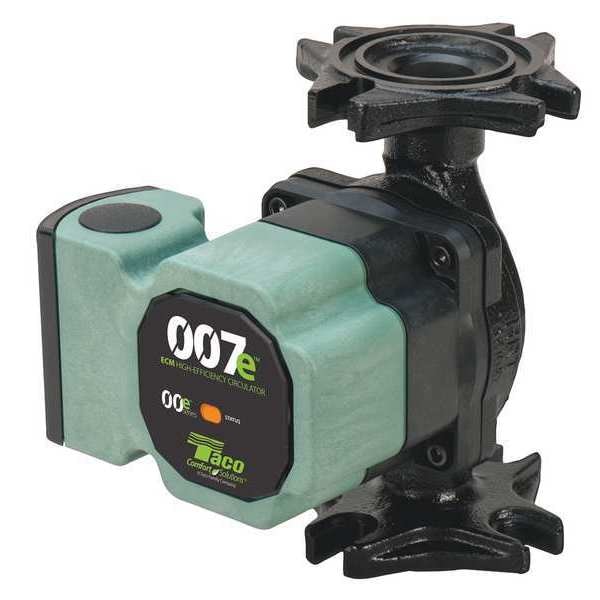

Hydronic Circulating Pump, 1/25 hp, 120v, 1 Phase, Flange Connection

  • Mfr # VB1016-HY2-4C2A00

  • Zoro # G9907880

product price:
$
252.99
/ea
Free Shipping & Returns

Key Features

Voltage
115V AC
Phase
Single
Horsepower
1/25 hp
Inlet/Outlet Size
3/4 in to 1-1/2 in
Series
007E
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
VB1016-HY2-4C2A00
Zoro #
G9907880
UPC #
190145175630
Country of Origin
Italy
Item
Hydronic Circulating Pump
Voltage
115V AC
Phase
Single
Horsepower
1/25 hp
Series
007E
Pump Type
Energy Efficient
Number of Speeds
Variable
Max. GPM @ Head
15 gpm @ 1 ft
Maximum Feet of Head
10 ft
Min. GPM @ Head
0 gpm @ 10 ft
Connection Type
Flange
Standards
FCC, UL-CUS
Shaft Material
Ceramic
Impeller Material
Composite
Compliance
UL
Thermal Protection
yes
Best Efficiency GPM @ Head
8 gpm @ 10 ft
Amps
0.54 A
Drive Type
Magnetic
Loop Configuration
Closed
Mechanical Seal
No
Pump Mount
In Line
Shut-Off
10 ft
Features
4-Bolt Flange, High Efficiency
Body Gasket Material
EPDM
For Use With Potable Systems
No
Nameplate Voltage
120V AC
Minimum Media Temperature
36 Degrees F
Maximum RPM
4,830 RPM
Series Family
00
Maximum Flow Rate @ 50 Feet of Head
13 gpm
Maximum Operating Pressure
125 psi
Maximum Flow Rate @ 15 Feet of Head
0 gpm
Frequency
60 Hz
Pump Housing Material
Cast Iron
Maximum Media Temperature
230 Degrees F
Maximum Flow Rate @ 5 Feet of Head
13 gpm
Flange or Union Included
No
Rotor Type
Wet
Maximum Flow Rate @ 10 Feet of Head
0 gpm
Maximum Flow Rate @ 1 Feet of Head
15 gpm
Includes Flange
No Flange Included
Includes Volute
Volute Included
Operating Pressure - Maximum
125 psi
Connection Standard
Flange
Pump Casing Material
Cast Iron
Revolutions Per Minute - Maximum
4,830 RPM
Flow Rate - Maximum
16 gpm
Media Temperature - Maximum
230 Degrees F
Feet of Head - Maximum
10 ft
For Low Lead Compliance Level
EX
Full Load Current
0.54 A
Motor Enclosure Design
Totally Enclosed Non-Ventilated
Media Temperature - Minimum
36 Degrees F

Description

Hydronic Circulating Pump, Compatible Intake Pipe Size 3/4 in, 1 in, 1 1/4 in, 1 1/2 in, Connection Type Flange, Face to Face Dimension 6 3/8 in, Flange or Union Included No, For Use With Potable Systems No, Horsepower 1/25 hp, Maximum Feet of Head 10 ft, Maximum Flow Rate @ 10 Feet of Head 0 gpm, Maximum Flow Rate @ 1 Foot of Head 15 gpm, Nameplate Voltage 120V AC, Number of Speeds Variable, Phase Single, Pump Type Energy Efficient, Series Family 00, Maximum Flow Rate @ 5 Feet of Head 13 gpm
