  9. Hydronic Circulating Pump, 1/25 hp, 120v, 1 Phase, Flange Connection
Taco

Hydronic Circulating Pump, 1/25 hp, 120v, 1 Phase, Flange Connection

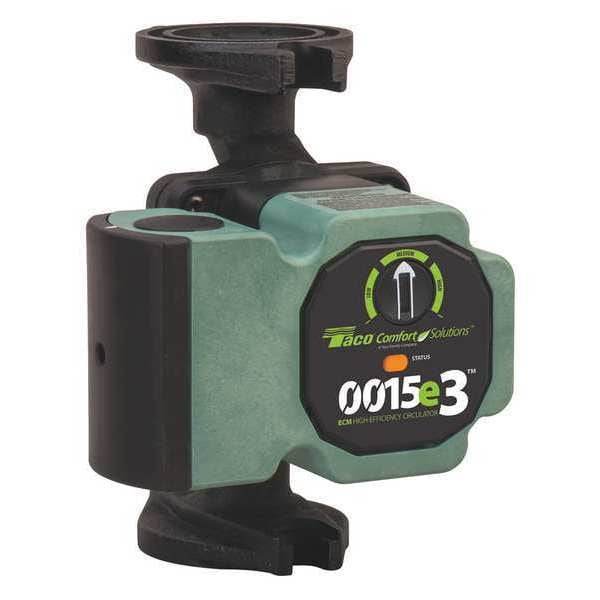

Taco Hydronic Circulating Pump, 1/25 hp, 120v, 1 Phase, Flange Connection VM1816-HY2-FC2A00
Tap to zoom
Hover or click to zoom
$261.76
  • Item: Hydronic Circulating Pump
  • Voltage: 120v
  • HP: 1/25 hp
See full product details
This item ships free.
Total: $261.76

Taco #VM1816-HY2-FC2A00 Specifications

  • Item: Hydronic Circulating Pump
  • Voltage: 120v
  • HP: 1/25 hp
  • Housing Material: Cast iron
  • Phase - Pumps: 1
  • Phase: 1
  • Inlet/Outlet Size: 3/4 in to 1-1/2 in
  • Pump Type: Wet Rotor
  • Connection Style: Flange
  • Max. GPM @ Head: 15 gpm @ 1 ft
  • Min. GPM @ Head: 0 gpm @ 18 ft
  • Series: 00e
  • Shut-Off: 18 ft
  • Width: 5 in
  • Mechanical Seal: No
  • Max. Temp.: 230 Degrees F
  • Best Efficiency GPM @ Head: 8 gpm @ 10 ft
  • Number of Speeds: Variable
  • Features: 2-Bolt Flange, 3 Settings, High Efficiency
  • Shaft Material: Ceramic
  • Height: 6 3/8 in
  • Amps: 0.54
  • RPM: 4,830 RPM
  • Thermal Protection: yes
  • Standards: UL
  • Loop Configuration: Closed
  • Flange/Union Included: No
  • Impeller Material: Composite
  • Housing Material - Pumps: Cast Iron
  • Pump Mount: In Line
  • HVAC Circulating Pump Type: Hydronic Circulating Pump
  • Length: 6 in
  • Manufacturers Warranty Length: 3 yr
  • Voltage - Pumps: 115V AC
  • Max. Operating Pressure: 125 psi
  • Compliance: UL
  • Face to Face Dimension: 6 3/8 in
  • Drive Type: Magnetic
  • Length (Straight Wireway): 6 in
  • Series Family: 00
  • Brand and Connection Combo: TACO , Flange Connection
  • Phase and Brand: TACO Single Phase
  • Nameplate Voltage: 115V AC
  • Brand and Connection Combo Broad: Taco, Flanged
  • Maximum Flow Rate @ 10 Feet of Head: 8 gpm
  • Maximum Flow Rate @ 50 Feet of Head: [DELETE]
  • Body Gasket Material: EPDM
  • Manufacturer Warranty Length: 3 yr
  • Overall Width: 5 in
  • Maximum Flow Rate @ 15 Feet of Head: 5 gpm
  • Connection Type: Flange
  • Horsepower: 1/25
  • Maximum RPM: 4,830 RPM
  • Pump Housing Material: Cast Iron
  • Maximum Media Temperature: 230 Degrees F
  • For Use With Potable Systems: No
  • Overall Length: 6 in
  • Compatible Intake Pipe Size: 3/4 in, 1 in, 1 1/4 in, 1 1/2 in
  • Frequency: 60 Hz
  • Rotor Type: Wet
  • Overall Height: 6.38 in
  • For Use With: Hydronic Systems
  • Maximum Operating Pressure: 125 psi
  • Minimum Media Temperature: 36 Degrees F
  • Maximum Feet of Head: 18 ft
  • Flange or Union Included: No
  • Maximum Flow Rate @ 1 Feet of Head: 15 gpm
  • Compatible Media Type: Water
  • Maximum Flow Rate @ 5 Feet of Head: 12 gpm
  • Country of Origin (subject to change): United States

Description

Hydronic Circulating Pump, Compatible Intake Pipe Size 3/4 in, 1 in, 1 1/4 in, 1 1/2 in, Connection Type Flange, Face to Face Dimension 6 3/8 in, Flange or Union Included No, For Use With Potable Systems No, Horsepower 1/25, Maximum Feet of Head 18 ft, Maximum Flow Rate @ 10 Feet of Head 8 gpm, Maximum Flow Rate @ 15 Feet of Head 5 gpm, Maximum Flow Rate @ 1 Foot of Head 15 gpm, Nameplate Voltage 115V AC, Number of Speeds Variable, Phase Single, Pump Type Energy Efficient, Series Family 00

Restrictions and Compliance

  • WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
  • This product is not intended for potable water applications (human consumption – drinking and cooking) and has not been designed to be compliant with the “Safe Drinking Water Act” requirements for low lead in potable water applications. This item is for use, only, in non-potable (non-human consumption) water applications.
  • *** This is a restricted item in CA, LA, MD, VT. It cannot be used for potable water applications.
