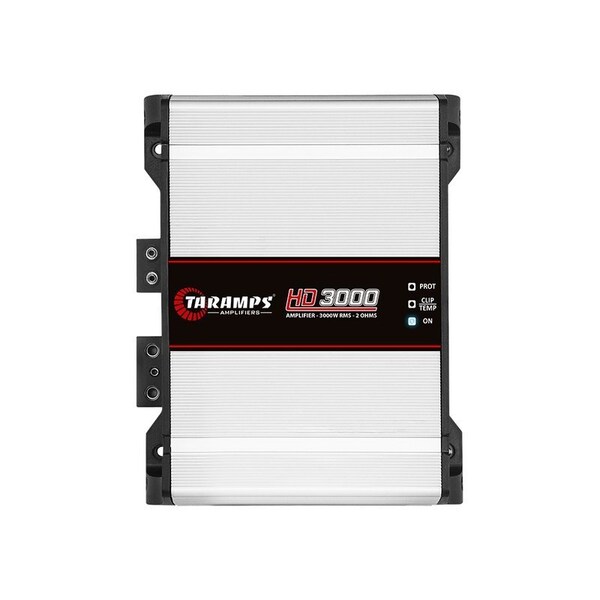

Single Channel High Power Car Audio Amplifier Suitable down to 2 Ohms w/High and Bass Boost & Low P

High Power compact car audio amplifier Ideal for single channel car or truck applications. Reference HD3000 - 2 OHMS Operation Class Class D Single Channel Operatrion Max Output Power 13.8 VDC - 2 OHMS: 3598W RMS 13.8 VDC - 4 OHMS: 2446W RMS 13.8 VDC - 8 OHMS: 1403W RMS 12.6 VDC - 2 OHMS: 3000W RMS 12.6 VDC - 4 OHMS: 2040W RMS 12.6 VDC - 8 OHMS: 1170W RMS Input Sensitivity 250mV -9.78 dBm Signal Noise/Ratio, 95dB Frequency Response Full Range: 5Hz to 15KHz Crossover High Pass HPF 10Hz to 80Hz -12dB/Octave Variable Crossover Low Pass LPF 80Hz a Full -12dB/Octave Variable Bass Boost 0 to 10dB 50Hz Input Impedance 18K OHMS Total Harmonic Distortion THD 0.3% Protection System Short into Output / Power Supply High/Low / Thermal Protection Maximum Supply Voltage 16 VDC Idle Consumption 2,10A Musical Maximum Consumption 12.6VDC: 153A Sinusoidal Signal Maximum Consumption 1kHz 12.6VDC: 306A Dimensions WxHxD 229 x 65 x 288mm Details Amplifier Class D 3.000 watts RMS 2 ohms
