Shop All Variable Pitch V-Belt Pulleys
Tb Woods

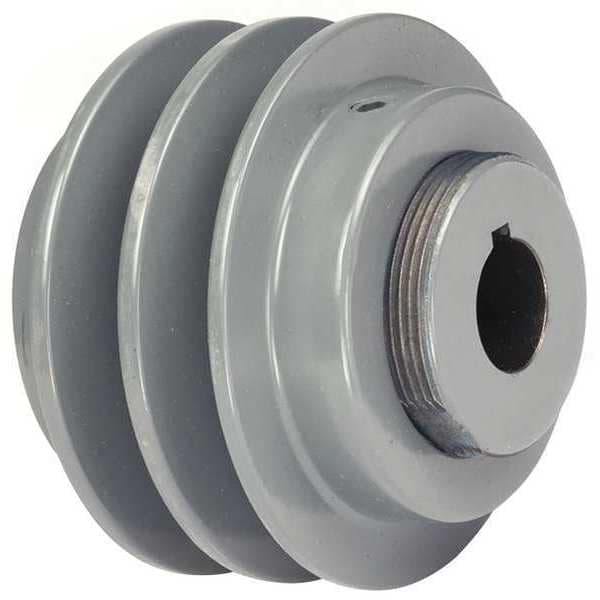

1-1/8" Fixed Bore 2 Groove Variable Pitch Pulley 3.35" OD
Mfr # 2VP36118
Zoro # G7111581
product price: $87.89
/ea
Free Shipping & Returns
$87.89
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Construction Solid
- Fits Shaft Dia. 1-1/8 in
- Number of Grooves 2
- 3L Belt Pitch Dia. 2.58 in to 2.78 in
- For V-Belt Section 3L, 4L, 5L, A, AX, B, BX
Product Information
- Brand Tb Woods
- MFR # 2VP36118
- Zoro # G7111581
- UPC # 698672024969
- Country of Origin Multiple
- Category Variable Pitch V-Belt Pulleys
Dimensions
Fits Shaft Dia. | 1-1/8 in |
3L Belt Pitch Dia. | 2.58 in to 2.78 in |
5L or B Belt Pitch Dia. | 3.1 in to 3.3 in |
Pulley Outside Dia. | 3.35 in |
5L, B, or BX Belt Pitch Dia. | 3.17 in to 3.37 in |
4L or A Belt Pitch Dia. | 3.02 in to 3.22 in |
Keyway Size Type | 0.250 in x 0.125 in |
4L, A, or AX Belt Pitch Dia. | 3.02 in to 3.22 in |
Pulley Bore Dia. | 1 1/8 in |
Keyway Size | 0.250" x 0.125" |
For Belt Trade Size | 3L, 4L, 5L, A, AX, B, BX |
4L Pitch Diameter (Maximum) | 3 in |
5L Pitch Diameter (Minimum) | 2.5 in |
A Pitch Diameter (Minimum) | 2 in |
B Pitch Diameter (Maximum) | 3.3 in |
Keyway Depth | 1/8 in |
AX Pitch Diameter (Maximum) | 3 in |
Outside Diameter | 3.35 in |
3L Pitch Diameter (Minimum) | 1.9 in |
B Pitch Diameter (Minimum) | 2.5 in |
Bore Diameter | 1 1/8 in |
BX Pitch Diameter (Minimum) | 2.5 in |
Maximum Pitch Diameter | 2.7 in (3L), 3 in (4L, A), 3.3 in (5L, B) |
AX Pitch Diameter (Minimum) | 2 in |
4L Pitch Diameter (Minimum) | 2 in |
Minimum Pitch Diameter | 1.9 in (3L), 2.0 in (4L, A), 2.5 in (5L, B) |
Keyway Width | 1/4 in |
3L Pitch Diameter (Maximum) | 2.7 in |
BX Pitch Diameter (Maximum) | 3.3 in |
A Pitch Diameter (Maximum) | 3 in |
5L Pitch Diameter (Maximum) | 3.3 in |
Minimum Face Width | 1.375 in |
Maximum Face Width | 2 in |
Overall Width | 3 in |
Length through Bore | 3 in |
Details
Description
Variable Pitch V-Belt Pulley, Bore Diameter 1 1/8 in, For Belt Trade Size 3L, 4L, 5L, A, AX, B, BX, For V-Belt Type Banded, Classical, Cogged, Material Cast Iron, Maximum Pitch Diameter 2.7 in (3L), 3 in (4L, A), 3.3 in (5L, B), Number of Grooves 2, Outside Diameter 3.35 in, 3L Pitch Diameter (Maximum) 2.7 in, 3L Pitch Diameter (Minimum) 1.9 in, 3V Pitch Diameter (Maximum) Not Applicable, 3V Pitch Diameter (Minimum) Not Applicable, 3VX Pitch Diameter (Maximum) Not Applicable
