  11. Buna N Spider Insert, L075 Coupling Size, 1 47/64 in Outside Dia, Inch, 0.14 hp

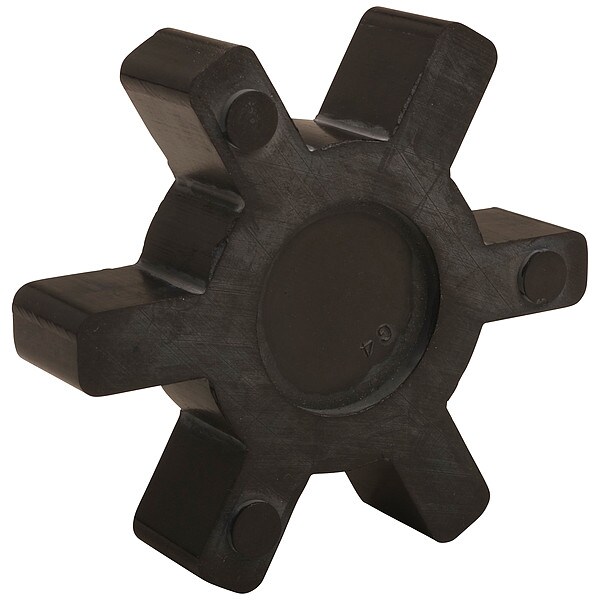

Tb Woods Buna N Spider Insert, L075 Coupling Size, 1 47/64 in Outside Dia, Inch, 0.14 hp L075N - main

Buna N Spider Insert, L075 Coupling Size, 1 47/64 in Outside Dia, Inch, 0.14 hp

  • Mfr # L075N

  • Zoro # G2233296

product price: $7.15
/ea

Key Features

Item - Jaw Coupling Spiders
Jaw Coupling Insert
Size - Jaw Couplings
L075
Material - Spiders
Buna N
Rated Torque
90 in-lb
Max. RPM
11,000 RPM
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
L075N
Zoro #
G2233296
UPC #
698672000055
Country of Origin
United States

Dimensions

Size - Jaw Couplings
L075
Width (In.)
1.74 in
Height (In.)
0.44 in
Length (In.)
1.74 in
Coupling Size
L075
Spider Width
1.74 in
Outside Diameter
1 47/64 in

Details

Item - Jaw Coupling Spiders
Jaw Coupling Insert
Material - Spiders
Buna N
Rated Torque
90 in-lb
Max. RPM
11,000 RPM
HP Rating @ 100 RPM
0.14
Temp. Range
-40 Degrees to 212 Degrees F
HP Rating @ 3600 RPM
5.0
Accommodates
1 Degrees Angular and 0.015 in of Parallel Misalignment
Type
Buna N Spider
Max. Bore (In.)
0.875
Color
Black
Max. Torque (In.-Lbs.)
90
HP Rating @ 300 RPM
0.4
Item
Buna N Spider Insert
HP Rating @ 1200 RPM
1.7
Torque (In.-Lbs.)
90
HP Rating @ 1800 RPM
2.6
Serviceable Temp. Range (F)
-40 to 212
Minimum Operating Temperature
-40 Degrees F
Maximum Speed
11,000 RPM
Compatible Hub Manufacturer Part Number
L075
Parallel Misalignment
0.015 in
Maximum Operating Temperature
212 Degrees F
Maximum Torque
90 in-lb
Angular Misalignment
1 Degrees
Horsepower @ 100 RPM
0.14 hp
Fail Safe
Yes
Zero Backlash
No
For Misalignment Type
Angular, Parallel
For Maximum Hub Bore
7/8 in
Resistance Properties
Oil Resistant
Durometer Hardness
80A
Number of Teeth
6
Working Torque
90 in-lb
System of Measurement
Inch
Spider Type
Solid Center Spider
Spider Material
Buna-N
Horsepower @ RPM
1.7 hp @ 1200 RPM, 2.6 hp @ 1800 RPM, 5.1 hp @ 3600 RPM

Description

Buna N Spider Insert, Coupling Size L075, Outside Diameter 1 47/64 in, System of Measurement Inch, Maximum Speed 11,000 RPM, Horsepower @ 100 RPM 0.14 hp, Spider Material Buna-N, Maximum Torque 90 in-lb, Parallel Misalignment 0.015 in, Durometer Hardness 80A, Angular Misalignment 1 Degrees , Color Black, Compatible Hub Manufacturer Part Number L075, Fail Safe Yes, For Maximum Hub Bore 7/8 in, For Misalignment Type Angular, Parallel
