Shop TB WOODS

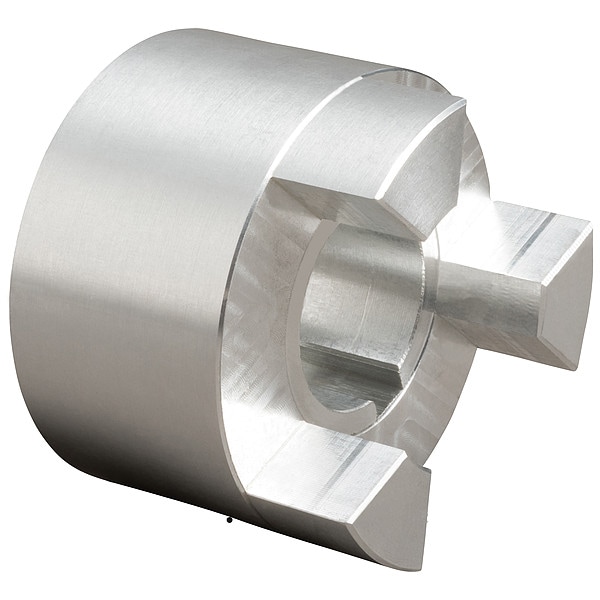

Jaw Coupling Hub, AL095, Aluminum, 5/8"

  • Mfr # AL09558

  • Zoro # G1918637

product price:  $24.99
/ea

Key Features

Item - Jaw Coupling Hubs
Jaw Coupling Hub
Size - Jaw Couplings
AL095
Keyway Size Type
3/16 in x 3/32 in
Material - Hubs
Aluminum
Outside Dia.
2.11 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
AL09558
Zoro #
G1918637
UPC #
698672037983
Country of Origin
United States

Dimensions

Size - Jaw Couplings
AL095
Bore Dia.
5/8 in
Keyway Size Type
3/16 in x 3/32 in
Outside Dia.
2.11 in
Assembled Coupling Length
2.5 in
Keyway Size
3/16" x 3/32"
Overall Length
2.54 in
Size
AL095
Coupling Size
L095
Screw Thread Size
5/16"-18 NC
Coupling Overall Length
2 1/2 in
Hub Diameter
2 7/64 in
Keyway Depth
3/32 in
Maximum Bore Diameter
1 1/8 in
Bore Diameter
5/8 in
Outside Diameter
2 7/64 in
Keyway Width
3/16 in
Length through Bore
1 in

Details

Item - Jaw Coupling Hubs
Jaw Coupling Hub
Material - Hubs
Aluminum
Material
Aluminum
Item
Jaw Coupling Hub
Minimum Operating Temperature
-31 Degrees F
Bore Type
Round Bore with Keyway
Number of Locking Screws
1
Hub Projection
1 in
Included Screws
Set Screw
Standards
ISO Certified
Compatible Center Element Manufacturer Part Number
L095H, L095N, L095U
Weight
0.4 lb
Jaw Profile
Straight
Resistance Properties
Chemical Resistant, Oil Resistant
Maximum Speed
9,000 RPM
Horsepower @ 100 RPM
0.31 hp (Buna-N Spider), 0.47 hp (Urethane Spider), 0.89 hp (Hytrel Spider)
Hub Material
Aluminum
Maximum Operating Temperature
250 Degrees F
System of Measurement
Inch
Bore Tolerance
+0.0005/+0.0015 in
Maximum Torque for Spider Types
194 in-lb (Buna-N), 291 in-lb (Urethane), 561 in-lb (Hytrel)
Shaft Locking Type
Set Screw

Description

Jaw Coupling Hub, Coupling Size L095, Outside Diameter 2 7/64 in, Coupling Overall Length 2 1/2 in, System of Measurement Inch, Hub Material Aluminum, Maximum Speed 9,000 RPM, Horsepower @ 100 RPM 0.31 hp (Buna-N Spider), 0.47 hp (Urethane Spider), 0.89 hp (Hytrel Spider), Keyway Depth 3/32 in, Keyway Width 3/16 in, Bore Diameter 5/8 in, Shaft Locking Type Set Screw, Bore Type Round Bore with Keyway, Jaw Profile Straight, Compatible Center Element Manufacturer Part Number L095H, L095N, L095U
