Shop TB WOODS

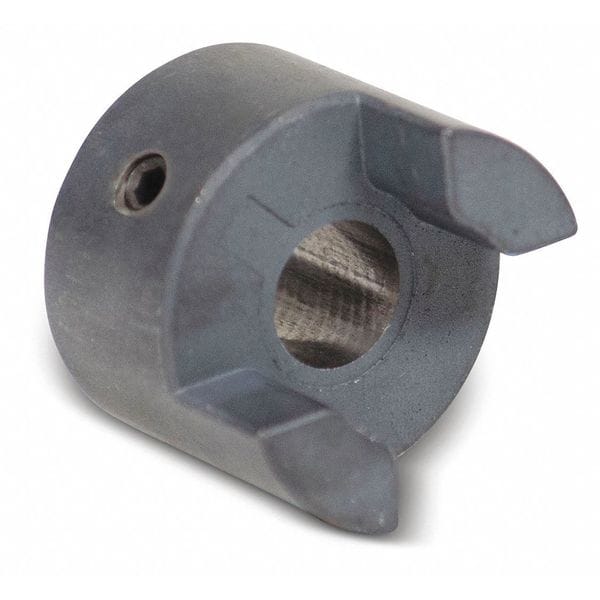

L-Jaw Coupling Hub, L070, Sint Iron, 1/2", NK

  • Mfr # L07012NK

  • Zoro # G1711071

product price:
$
6.45
/ea

Key Features

Item - Jaw Coupling Hubs
Jaw Coupling Hub
Size - Jaw Couplings
L070
Keyway Size Type
None
Material - Hubs
Sintered Iron
Outside Dia.
1.36 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
L07012NK
Zoro #
G1711071
UPC #
698672116268
Country of Origin
United States
Item - Jaw Coupling Hubs
Jaw Coupling Hub
Material - Hubs
Sintered Iron
Item
Jaw Coupling Hub
Material
Sintered iron
Standards
ISO Certified
Horsepower @ 100 RPM
0.069 hp (Buna-N Spider), 0.1 hp (Urethane Spider), 0.18 hp (Hytrel Spider)
System of Measurement
Inch
Number of Locking Screws
1
Bore Tolerance
+0.0005/+0.0015 in
Bore Type
Round Bore
Resistance Properties
Chemical Resistant, Oil Resistant
Compatible Center Element Manufacturer Part Number
L070H, L070N, L070U
Minimum Operating Temperature
-31 Degrees F
Jaw Profile
Straight
Hub Projection
3/4 in
Weight
0.2 lb
Maximum Operating Temperature
250 Degrees F
Maximum Speed
14,000 RPM
Maximum Torque for Spider Types
114 in-lb (Hytrel), 43 in-lb (Buna-N), 65 in-lb (Urethane)
Hub Material
Carbon Steel
Shaft Locking Type
Set Screw
Included Screws
Set Screw

Description

Jaw Coupling Hub, Coupling Size L070, Outside Diameter 1 23/64 in, Coupling Overall Length 2 in, System of Measurement Inch, Hub Material Carbon Steel, Maximum Speed 14,000 RPM, Horsepower @ 100 RPM 0.069 hp (Buna-N Spider), 0.1 hp (Urethane Spider), 0.18 hp (Hytrel Spider), Bore Diameter 1/2 in, Shaft Locking Type Set Screw, Bore Type Round Bore, Jaw Profile Straight, Compatible Center Element Manufacturer Part Number L070H, L070N, L070U, Screw Thread Size 1/4 In.-20 UNC 2B
