Shop TB WOODS

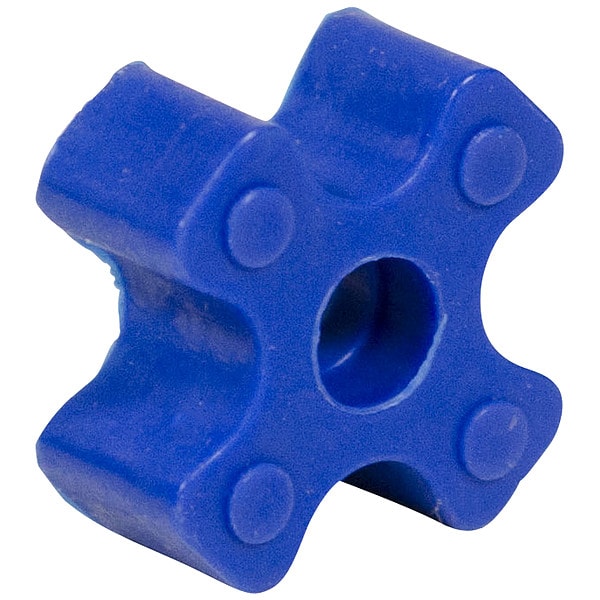

L-Jaw Coupling Insert, L050, Urethane

  • Mfr # L050U
  • Zoro # G0736513
product price:
$
10.79
/ea

Key Features

Item - Jaw Coupling Spiders
Jaw Coupling Insert
Size - Jaw Couplings
L050
Material - Spiders
Urethane
Rated Torque
39 in-lb
Max. RPM
18,000 RPM
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
L050U
Zoro #
G0736513
UPC #
698672000215
Country of Origin
United States

Dimensions

Size - Jaw Couplings
L050
Coupling Size
L050
Length (In.)
1.06 in
Height (In.)
0.42 in
Width (In.)
1.06 in
Outside Diameter
1 1/16 in
Spider Width
0.42 in

Details

Item - Jaw Coupling Spiders
Jaw Coupling Insert
Material - Spiders
Urethane
Rated Torque
39 in-lb
Max. RPM
18,000 RPM
HP Rating @ 100 RPM
0.06
Temp. Range
-30 Degrees to 160 Degrees F
HP Rating @ 3600 RPM
2.3
Max. Bore (In.)
0.625
Color
Blue
Torque (In.-Lbs.)
39
HP Rating @ 300 RPM
0.2
Serviceable Temp. Range (F)
-30 to 160
HP Rating @ 1800 RPM
1.1
Item
Urethane Spider Insert
Accommodates
1 Degrees Angular and 0.015 in of Parallel Misalignment
HP Rating @ 1200 RPM
0.8
Type
Urethane Spider
Max. Torque (In.-Lbs.)
39
Application
Blowers, Compressors, Generators, Pumps
Zero Backlash
No
Durometer Hardness
90A
Maximum Torque
39 in-lb
Horsepower @ 100 RPM
0.06 hp
Spider Type
Open Center Spider
Maximum Speed
18,000 RPM
For Misalignment Type
Angular, Parallel
Working Torque
39 in-lb
Parallel Misalignment
0.015 in
Minimum Operating Temperature
-30 Degrees F
Compatible Hub Manufacturer Part Number
L050
Fail Safe
Yes
Resistance Properties
Chemical Resistant, Oil Resistant
Horsepower @ RPM
0.75 hp @ 1200 RPM, 1.1 hp @ 1800 RPM, 2.3 hp @ 3600 RPM
Number of Teeth
4
System of Measurement
Inch
For Maximum Hub Bore
5/8 in
Angular Misalignment
1 Degrees
Maximum Operating Temperature
160 Degrees F
Spider Material
Polyurethane

Description

Urethane Spider Insert, Coupling Size L050, Outside Diameter 1 1/16 in, System of Measurement Inch, Maximum Speed 18,000 RPM, Horsepower @ 100 RPM 0.06 hp, Spider Material Polyurethane, Maximum Torque 39 in-lb, Parallel Misalignment 0.015 in, Durometer Hardness 90A, Angular Misalignment 1 Degrees , Application Blowers, Compressors, Generators, Pumps, Color Blue, Compatible Hub Manufacturer Part Number L050, Fail Safe Yes, For Maximum Hub Bore 5/8 in, For Misalignment Type Angular, Parallel
