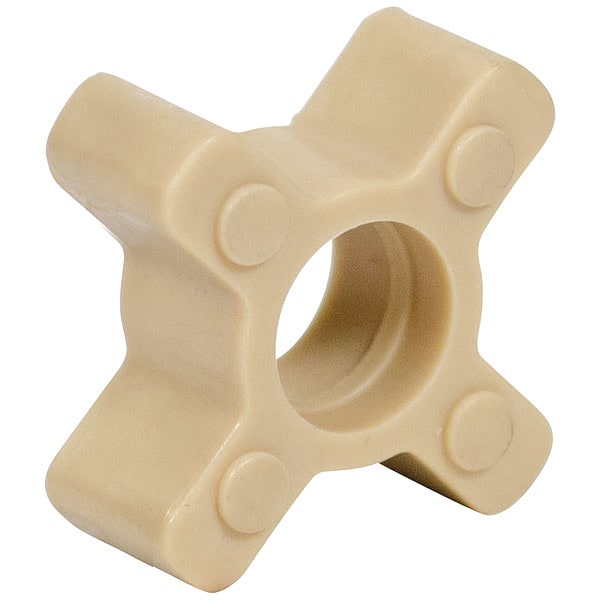

Tb Woods L-Jaw Coupling Insert, L070, Hytrel L070H - main

L-Jaw Coupling Insert, L070, Hytrel

  • Mfr # L070H

  • Zoro # G1572216

product price: $11.29
/ea

Key Features

Item - Jaw Coupling Spiders
Jaw Coupling Insert
Size - Jaw Couplings
L070
Material - Spiders
Hytrel
Rated Torque
114 in-lb
Max. RPM
14,000 RPM
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
L070H
Zoro #
G1572216
UPC #
698672000147
Country of Origin
United States

Dimensions

Size - Jaw Couplings
L070
Length (In.)
1.36 in
Height (In.)
0.44 in
Coupling Size
L070
Width (In.)
1.36 in
Spider Width
0.44 in
Outside Diameter
1 23/64 in

Details

Item - Jaw Coupling Spiders
Jaw Coupling Insert
Material - Spiders
Hytrel
Rated Torque
114 in-lb
Max. RPM
14,000 RPM
HP Rating @ 100 RPM
0.18
Temp. Range
-60 Degrees to 250 Degrees F
HP Rating @ 1200 RPM
2.1
Serviceable Temp. Range (F)
-60 to 250
Max. Bore (In.)
0.750
HP Rating @ 1800 RPM
3.3
Item
Hytrel Spider Insert
Type
Hytrel Spider
Torque (In.-Lbs.)
114
Max. Torque (In.-Lbs.)
114
HP Rating @ 3600 RPM
6.5
Color
White
Accommodates
1/2 Degrees Angular and 0.015 in of Parallel Misalignment
HP Rating @ 300 RPM
0.5
Application
Cranes, Generators, Mills
Horsepower @ RPM
2.2 hp @ 1200 RPM, 3.3 hp @ 1800 RPM, 6.5 hp @ 3600 RPM
For Maximum Hub Bore
3/4 in
For Motion Type
Start and Stop
Resistance Properties
Chemical Resistant, Oil Resistant
Fail Safe
Yes
System of Measurement
Inch
Angular Misalignment
0.5 Degrees
For Minimum Hub Bore
1/4 in
Working Torque
114 in-lb
Maximum Speed
14,000 RPM
Parallel Misalignment
0.015 in
Durometer Hardness
55D
Number of Teeth
4
Compatible Hub Manufacturer Part Number
L070
Spider Material
Hytrel
Horsepower @ 100 RPM
0.18 hp
For Misalignment Type
Angular, Parallel
Zero Backlash
No
Maximum Operating Temperature
250 Degrees F
Spider Type
Open Center Spider
Minimum Operating Temperature
-60 Degrees F
Maximum Torque
114 in-lb

Description

Hytrel Spider Insert, Coupling Size L070, Outside Diameter 1 23/64 in, System of Measurement Inch, Maximum Speed 14,000 RPM, Horsepower @ 100 RPM 0.18 hp, Spider Material Hytrel, Maximum Torque 114 in-lb, Parallel Misalignment 0.015 in, Durometer Hardness 55D, Angular Misalignment 0.5 Degrees , For Minimum Hub Bore 1/4 in, Application Cranes, Generators, Mills, Color White, Compatible Hub Manufacturer Part Number L070, Fail Safe Yes, For Maximum Hub Bore 3/4 in
