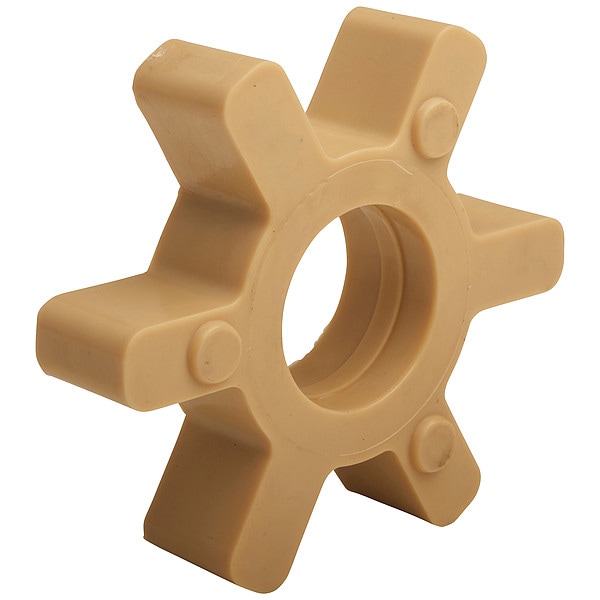

Tb Woods L-Jaw Coupling Insert, L190, Hytrel L190H - main

L-Jaw Coupling Insert, L190, Hytrel

  • Mfr # L190H

  • Zoro # G2201631

product price: $90.19
/ea
Free Shipping & Returns

Key Features

Item - Jaw Coupling Spiders
Jaw Coupling Insert
Size - Jaw Couplings
L190
Material - Spiders
Hytrel
Rated Torque
4,680 in-lb
Max. RPM
5,000 RPM
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
L190H
Zoro #
G2201631
UPC #
698672000192
Country of Origin
United States

Dimensions

Size - Jaw Couplings
L190
Width (In.)
4.47 in
Coupling Size
L190
Length (In.)
4.47 in
Height (In.)
0.88 in
Spider Width
0.88 in
Outside Diameter
4 15/32 in

Details

Item - Jaw Coupling Spiders
Jaw Coupling Insert
Material - Spiders
Hytrel
Rated Torque
4,680 in-lb
Max. RPM
5,000 RPM
HP Rating @ 100 RPM
7.40
Temp. Range
-60 Degrees to 250 Degrees F
Type
Hytrel Spider
Serviceable Temp. Range (F)
-60 to 250
HP Rating @ 1800 RPM
134
Torque (In.-Lbs.)
4680
Item
Hytrel Spider Insert
Max. Torque (In.-Lbs.)
4680
HP Rating @ 300 RPM
20
HP Rating @ 3600 RPM
266
HP Rating @ 1200 RPM
89
Color
White
Max. Bore (In.)
2.125
Accommodates
1/2 Degrees Angular and 0.015 in of Parallel Misalignment
Application
Cranes, Generators, Mills
Horsepower @ 100 RPM
7.4 hp
System of Measurement
Inch
Parallel Misalignment
0.015 in
Compatible Hub Manufacturer Part Number
L190
Working Torque
4,680 in-lb
Fail Safe
Yes
Angular Misalignment
0.5 Degrees
Maximum Operating Temperature
250 Degrees F
Horsepower @ RPM
134 hp @ 1800 RPM, 267 hp @ 3600 RPM, 89 hp @ 1200 RPM
Minimum Operating Temperature
-60 Degrees F
Maximum Torque
4,680 in-lb
For Misalignment Type
Angular, Parallel
For Maximum Hub Bore
2 1/8 in
Maximum Speed
5,000 RPM
Spider Material
Hytrel
Number of Teeth
6
Spider Type
Open Center Spider
Resistance Properties
Chemical Resistant, Oil Resistant
Zero Backlash
No
Durometer Hardness
55D
For Motion Type
Start and Stop
For Minimum Hub Bore
3/4 in

Description

Hytrel Spider Insert, Coupling Size L190, Outside Diameter 4 15/32 in, System of Measurement Inch, Maximum Speed 5,000 RPM, Horsepower @ 100 RPM 7.4 hp, Spider Material Hytrel, Maximum Torque 4,680 in-lb, Parallel Misalignment 0.015 in, Durometer Hardness 55D, Angular Misalignment 0.5 Degrees , For Minimum Hub Bore 3/4 in, Application Cranes, Generators, Mills, Color White, Compatible Hub Manufacturer Part Number L190, Fail Safe Yes, For Maximum Hub Bore 2 1/8 in
