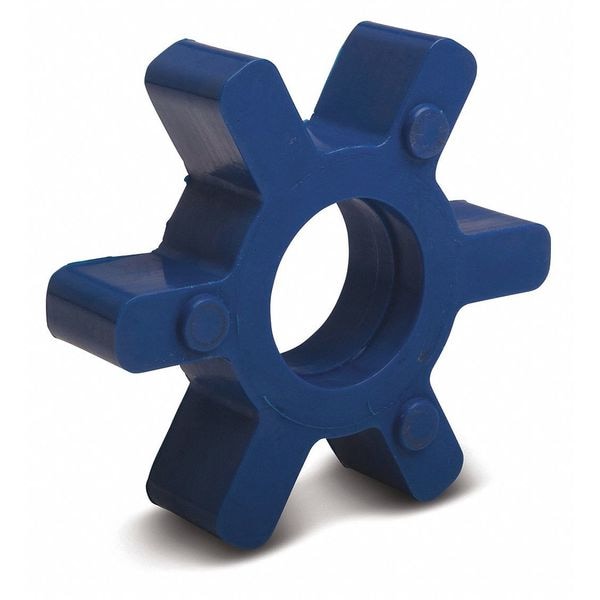

Tb Woods L-Jaw Coupling Insert, L190, Urethane L190U - main

L-Jaw Coupling Insert, L190, Urethane

  • Mfr # L190U

  • Zoro # G1452236

product price: $76.39
/ea
Free Shipping & Returns

Key Features

Item - Jaw Coupling Spiders
Jaw Coupling Insert
Size - Jaw Couplings
L190
Material - Spiders
Urethane
Rated Torque
2,592 in-lb
Max. RPM
5,000 RPM
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
L190U
Zoro #
G1452236
UPC #
698672000277
Country of Origin
United States

Dimensions

Size - Jaw Couplings
L190
Height (In.)
0.88 in
Width (In.)
4.47 in
Coupling Size
L190
Length (In.)
4.47 in
Spider Width
0.88 in
Outside Diameter
4 15/32 in

Details

Item - Jaw Coupling Spiders
Jaw Coupling Insert
Material - Spiders
Urethane
Rated Torque
2,592 in-lb
Max. RPM
5,000 RPM
HP Rating @ 100 RPM
4.10
Temp. Range
-30 Degrees to 160 Degrees F
HP Rating @ 1200 RPM
49
HP Rating @ 1800 RPM
74
Max. Torque (In.-Lbs.)
2592
HP Rating @ 300 RPM
12
Color
Blue
HP Rating @ 3600 RPM
147
Item
Urethane Spider Insert
Accommodates
1 Degrees Angular and 0.015 in of Parallel Misalignment
Type
Urethane Spider
Serviceable Temp. Range (F)
-30 to 160
Torque (In.-Lbs.)
2592
Max. Bore (In.)
2.125
Application
Blowers, Compressors, Generators, Pumps
Fail Safe
Yes
Maximum Torque
2,589 in-lb
Angular Misalignment
1 Degrees
Resistance Properties
Chemical Resistant, Oil Resistant
Durometer Hardness
90A
Horsepower @ RPM
149 hp @ 3600 RPM, 50 hp @ 1200 RPM, 74 hp @ 1800 RPM
Maximum Speed
5,000 RPM
Maximum Operating Temperature
160 Degrees F
Compatible Hub Manufacturer Part Number
L190
Spider Type
Open Center Spider
Minimum Operating Temperature
-30 Degrees F
Working Torque
2,589 in-lb
Parallel Misalignment
0.015 in
System of Measurement
Inch
Horsepower @ 100 RPM
4.1 hp
Spider Material
Polyurethane
For Maximum Hub Bore
2 1/8 in
Zero Backlash
No
Number of Teeth
6
For Misalignment Type
Angular, Parallel

Description

Urethane Spider Insert, Coupling Size L190, Outside Diameter 4 15/32 in, System of Measurement Inch, Maximum Speed 5,000 RPM, Horsepower @ 100 RPM 4.1 hp, Spider Material Polyurethane, Maximum Torque 2,589 in-lb, Parallel Misalignment 0.015 in, Durometer Hardness 90A, Angular Misalignment 1 Degrees , Application Blowers, Compressors, Generators, Pumps, Color Blue, Compatible Hub Manufacturer Part Number L190, Fail Safe Yes, For Maximum Hub Bore 2 1/8 in, For Misalignment Type Angular, Parallel
