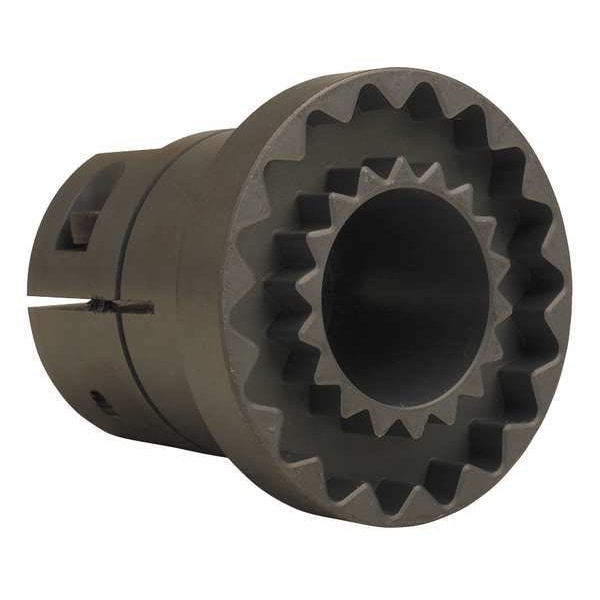

Sure-Flex Coupling Spacer Flange, 4JSC, Bore 1"
- Mfr # 4JSC351
- Zoro # G8513626
product price:Â
$
49.39
/ea
Key Features
Item - Sleeve Coupling Flanges
Sleeve Coupling Spacer Hub
Size - Sleeve Couplings
4
Flange Type - Sleeve Couplings
SC
Bore Dia.
1 in
Outside Dia.
1.063 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 4JSC351
- Zoro #
- G8513626
- UPC #
- 698672670036
- Country of Origin
- Mexico
- Item - Sleeve Coupling Flanges
- Sleeve Coupling Spacer Hub
- Flange Type - Sleeve Couplings
- SC
- Body Style
- Type-SC Spacer Hub
- Setscrew Location
- One over the Keyway
- Bushing Required
- None
- Ideal For
- Applications In Motors, Pumps, Compressors, Blowers, Mixers and Conveyors
- Item
- Sleeve Coupling Spacer Flange
- Max. Angular Misalignment
- 0.25 Degrees For Hytrel Sleeves, 1 Degrees For EPDM & Neoprene Sleeves
- Max. RPM
- 7,600 RPM
- Material of Construction
- Sintered Steel
- Weight
- 1.3 lb
- Hub Type
- Spacer Hub
- Application
- Compressors, Conveyors, Motors, Pumps
- Maximum Speed
- 7,600 RPM
- Features
- 4-way Flexing Action Absorbs Shock, Misalignment and End Float, Vibration
- Bore Type
- Round Keyed
- Set Screw Location
- Over Keyseat
- Resistance Properties
- Chemical Resistant, Oil Resistant
- System of Measurement
- Inch
- Hub Material
- Cast Iron
- Bore Tolerance
- +0.0005 in / +0.0015 in
- For Misalignment Type
- Angular, Parallel
- Included Screws
- (1) Socket Screw
- Maximum Torque
- 156 in-lb
Dimensions
- Size - Sleeve Couplings
- 4
- Bore Dia.
- 1 in
- Outside Dia.
- 1.063 in
- Keyway Size Type
- 1/4 in x 1/8 in
- Length through Bore (In.)
- 1.08 in
- Outside Dia. (In.)
- 1.063
- Keyseat Size (In.)
- 1/4 x 1/8
- Height (In.)
- 1.063 in
- Hub Dia. (In.)
- 1.063 in
- Bore Dia. (In.)
- 1
- Width (In.)
- 1.08 in
- Length through Bore
- 1 1/16 in
- Outside Diameter
- 2 in
- Keyway Width
- 1/4 in
- Bore Diameter
- 1 in
- Screw Thread Size
- 1/4"-20
- Keyway Depth
- 1/8 in
- Hub Diameter
- 2 in
- Coupling Size
- 4
- Fits Chest Size
- 4-way Flexing Action Absorbs Shock, Misalignment and End Float, Vibration
Description
Sleeve Coupling Spacer Flange, Coupling Size 4, Maximum Speed 7,600 RPM, Maximum Torque 156 in-lb, Outside Diameter 2 in, Bore Type Round Keyed, Hub Diameter 2 in, Hub Material Cast Iron, For Bushing Size Not Applicable, Bore Diameter 1 in, Length through Bore 1 1/16 in, System of Measurement Inch, Hub Body Length Not Applicable, Hub Type Spacer Hub, Application Compressors, Conveyors, Motors, Pumps, Bore Tolerance +0.0005 in / +0.0015 in
