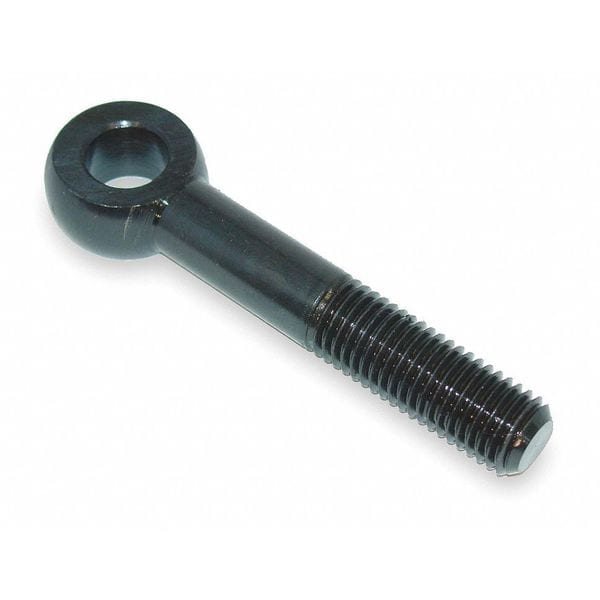

Eye Bolt With Shoulder, 3/8"-16, 2-5/8 in Shank, 3/8 in ID, Steel, black oxide
Mfr # 42941
Zoro # G2702603
CAD Available
product price: $10.49
/eaKey Features
CAD Drawing
Shoulder Style
With Shoulder
System of Measurement
Inch
Thread Size
3/8"-16
Shank Length
2-5/8 in
Eye Inside Diameter
3/8 in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
42941
Zoro #
G2702603
UPC #
-
Country of Origin
United States
Dimensions
Thread Size
3/8"-16
Shank Length
2-5/8 in
Eye Inside Diameter
3/8 in
Overall Length
3-3/8 in
Thread Length
1-1/2"
Screw Size
3/8 in
Eye Outside Diameter
3/4 in
Eye Thickness
3/8 in
Hole Center-to-End Length
3 in
Shank Diameter
3/8 in
Dia./Thread Size
3/8"-16
Eye Outside Dia.
3/4 in
Shank Dia.
3/8 in
Length from Ream Center
3 in
Eye Inside Dia.
3/8 in
Description
Fixed Rod End, Eye Inside Diameter 3/8 in, Eye Outside Diameter 3/4 in, Eye Thickness 3/8 in, Black Oxide, Steel, Material Grade/Class Grade 2, Material Quality Standards ASTM A311, REACH Compliant Yes, Hole Center-to-End Length 3 in, RoHS Compliant Yes, Shank Diameter 3/8 in, Tensile Strength 125,000 psi, Thread Style Partially Threaded, UNC (Coarse), Thread Direction Right Hand, Thread Length 1 1/2 in, Thread Pitch Not Applicable, Thread Size 3/8 In.-16, Shank Length 2 5/8 in
