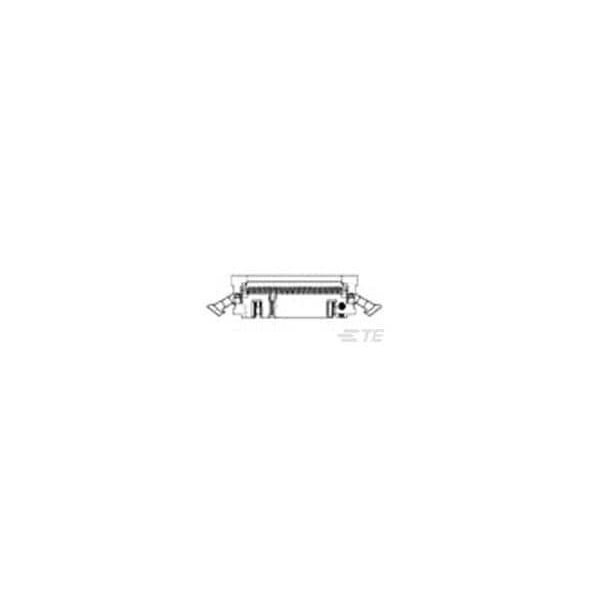

Te Connectivity 010 UNIV I/O 30DP SLOT LTCH 1-111494-5 - main

010 UNIV I/O 30DP SLOT LTCH

  • Mfr # 1-111494-5

  • Zoro # G501040519

product price:  $22.19
/ea
Sold in multiples of 4 for $88.76

Key Features

Max. Single Wire Size
26 AWG
Min. Single Wire Size
28 AWG
Max. Voltage
250V AC
Max. Temp.
105°C
Application
Signal
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1-111494-5
Zoro #
G501040519
UPC #
-
Country of Origin
China

Dimensions

Max. Single Wire Size
26 AWG
Min. Single Wire Size
28 AWG
Width
0.3299 in
Length
37.49 mm
Height
23.75 mm
Max. Insulation Dia.
0.97 mm
Contact Plating Thickness
29.92 µin

Details

Item
Connector
Max. Voltage
250V AC
Max. Temp.
105°C
Application
Signal
Standards
CSA Certified; UL E28476; UL Recognized
Material
Thermoplastic
Connector Type
Plug
Color
Black
Wire Type
Solid or Stranded
Connection Material
Phosphor Bronze
Hole Center to Center
2.54 mm
Features
With Ejection Latches; Panel Mount Feature; Shrouded
Terminal Type
Insulation Displacement Crimp
Flammability Rating
UL 94 V-0
Contact Type
Pin
Contact Finish
Matte
Terminal Finish
Tin Plated
Number of Rows
2
Number of Contacts
10
Connector Terminates To
Wire & Cable
Current Rating
1 A
