  11. 020 UNIV I/O 30DP NO EARS

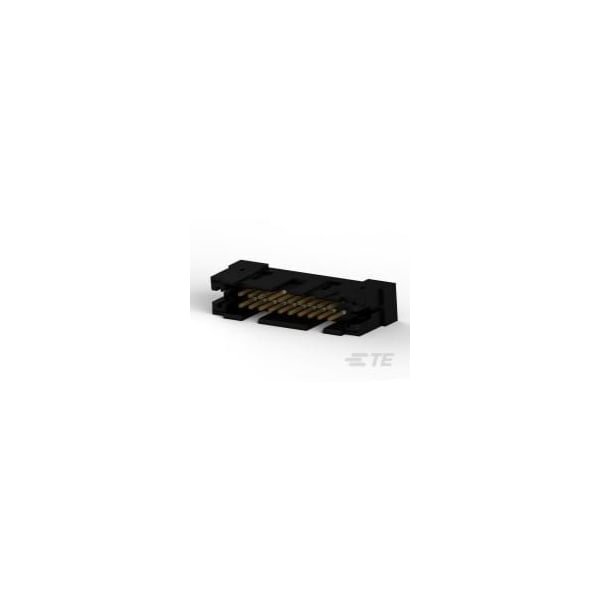

Te Connectivity 020 UNIV I/O 30DP NO EARS 1-111446-8 - main

020 UNIV I/O 30DP NO EARS

  • Mfr # 1-111446-8

  • Zoro # G501040557

product price: $7.85
/ea
Sold in multiples of 10 for $78.50

Key Features

Min. Single Wire Size
28 AWG
Max. Voltage
250V AC
Max. Temp.
105°C
Application
Signal
Standards
CSA Certified; UL E28476; UL Recognized
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1-111446-8
Zoro #
G501040557
UPC #
-
Country of Origin
China

Dimensions

Min. Single Wire Size
28 AWG
Width
0.3299 in
Height
14.48 mm
Length
1.572 in
Max. Insulation Dia.
0.97 mm
Max. Single Wire Size
26 AWG
Contact Plating Thickness
0.76 µm

Details

Item
Connector
Max. Voltage
250V AC
Max. Temp.
105°C
Application
Signal
Standards
CSA Certified; UL E28476; UL Recognized
Features
Shrouded
Material
Thermoplastic
Color
Black
Contact Type
Pin
Current Rating
1 A
Hole Center to Center
2.54 mm
Terminal Type
Through Hole - Solder; Insulation Displacement Crimp
Connection Material
Phosphor Bronze
Flammability Rating
UL 94 V-0
Connector Terminates To
Wire & Cable
Number of Contacts
20
Connector Type
Plug
Number of Rows
2
Wire Type
Solid or Stranded
